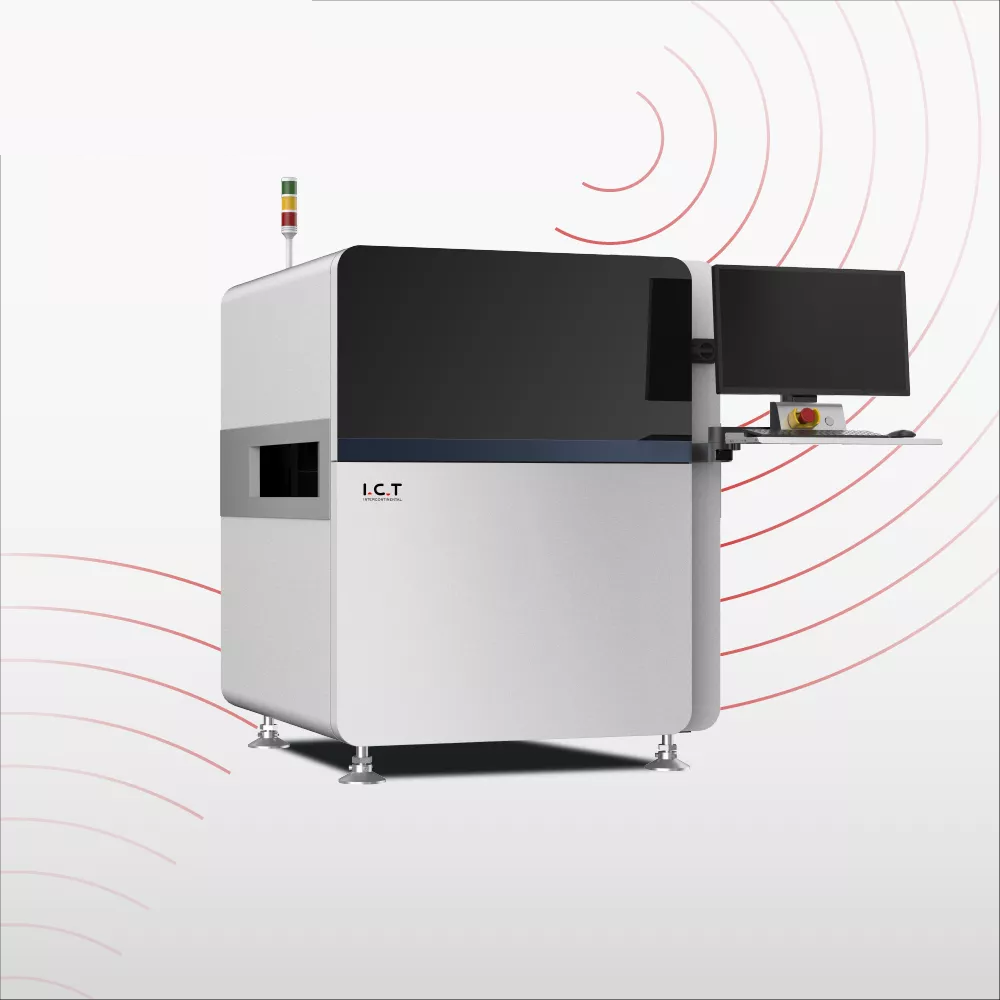

I.C.T I.C.T-AI-4540 Visual Optical System DIP Inverted Camera Online AOI Machines

FOV : 49*41mm

Resolution: 20um

Camera: 5M

Light: RGB + W light, 4 color integral

Inspection Speed: 0.23sec/FOV

Mixing PCB inspection: Support calling program automatically.

PCB Size:

Three section track: 50*50-350*400mm

Single section track: 50*50-450*400mm

PCB Height: Top: 110mm(150mm optional), Bottom:25mm

PCB Thickness: 0.3 ~ 6.0mm

PCB Edge: 3.0mm

PCB Warpage: ±3.0mm

PCB Weight: Max: 10Kg

Conveyor Height: 750&900±20mm

Display: 23.8 inch FHD display

Data output: Autogenerated statistic analysis SPC

Special function: Automatic search of elements and quick programming

Power: AC220 50/60Hz,5A
