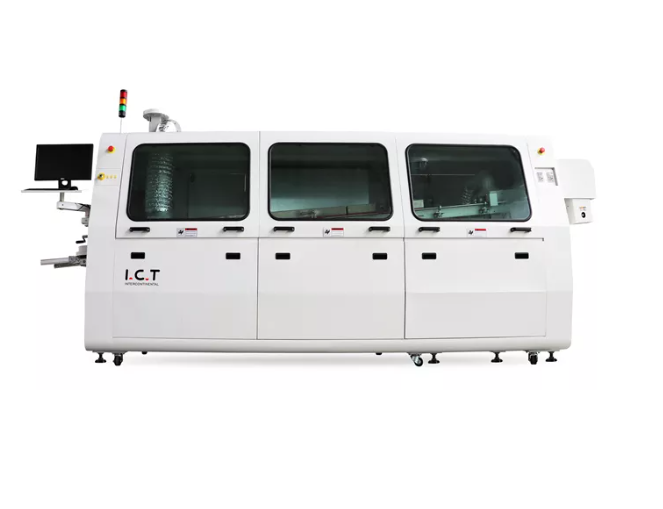

I.C.T I.C.T-Acrab450 High Stability DIP PCB Nitrogen Wave Soldering Machine (50-450mm)
ManufacturerI.C.T(View more products from this manufacturer)
ModelI.C.T-Acrab450
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Dimension(mm): 4420X1520X1750
Power Supply: 3P5W,380/220V 50Hz
Startup Power: 33kw
Operation Power: 8kw
Control System: PC+PLC
Preheating Zone: 3
Preheating Length: 1800mm
Preheating Temp.: (Room Temperature)-250°C
PCB Width(mm): 50-450mm
Finger: Spring Pressing Finger (Standard); Option:Spring Pressing Finger, Duck Mouth Finger
Solder Pot Capacity: Lead-free 500kg
Machine Weight(kg): Approx.2100kg
Option: External flux sprayer, Nitrogen protection, MES system:
