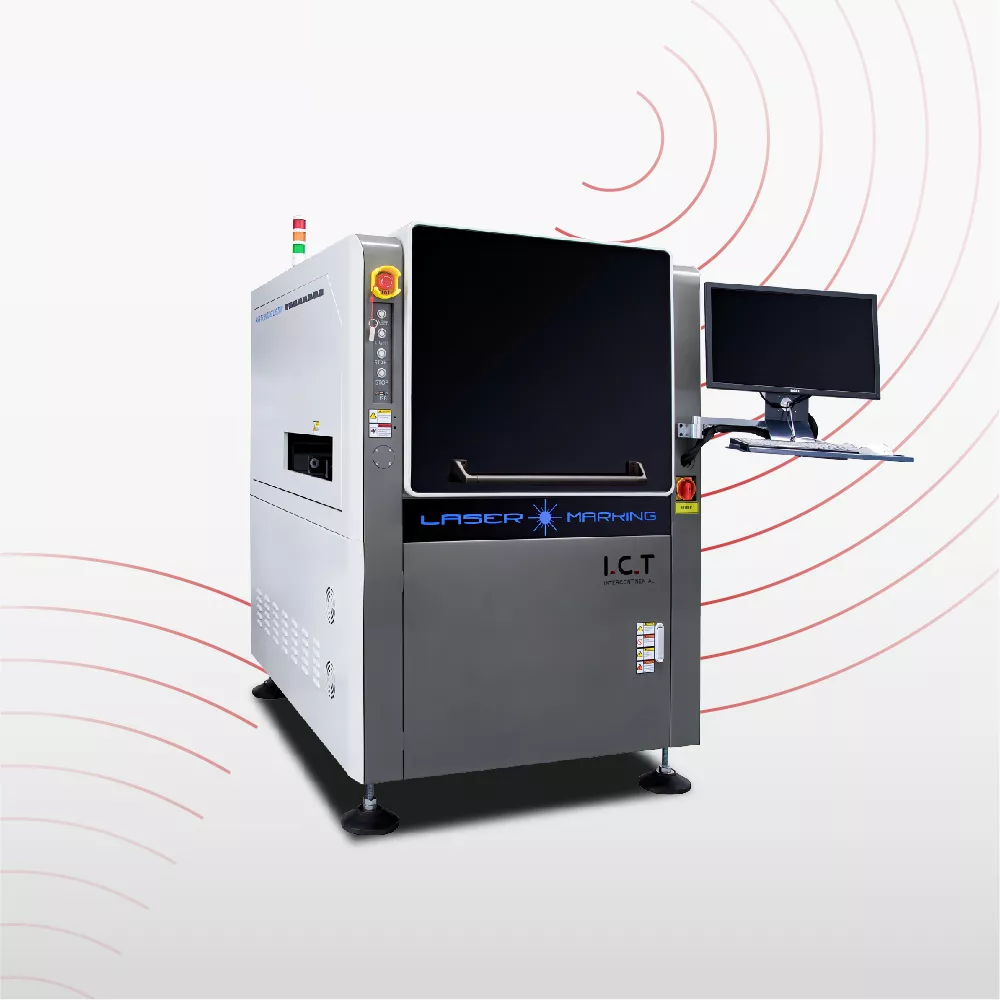

I.C.T I.C.T-400 Fiber Co2 UV Laser Marking Machine (<L400mm * W320mm)

Laser Type: UV laser, Green laser, Fiber laser, CO2 laser

Wave Length: UV laser: 355nm, Green laser: 532nm, Fiber laser: 1064nm, CO2 laser: 10640nm

Laser Power: UV laser: 3W(5W Option), Green laser: 7W, Fiber laser: 20W, CO2 laser: 30W

Laser Z-axis Lifting: Manual (Automatic is Option)

PCB Flip Function: Inside PCB Flip

PCB Size: <L400mm * W320mm

Marking Range: <380mm*320mm

PCB Size: L50*W80mm ~L450 * W350mm; Thickness 0.5mm-6mm

Marking Speed: <7000mm/s

Marking Precision: ±0.05mm

Minimum Character Height: 0.1mm ~0.4mm

Reading Code Function: Automatically read two-dimensional code and save data, automatically record and alarm when it is unable to read.

Power: L1000 *W1200 *H1500 mm

Air Pressure: 0.5~0.6Mpa
