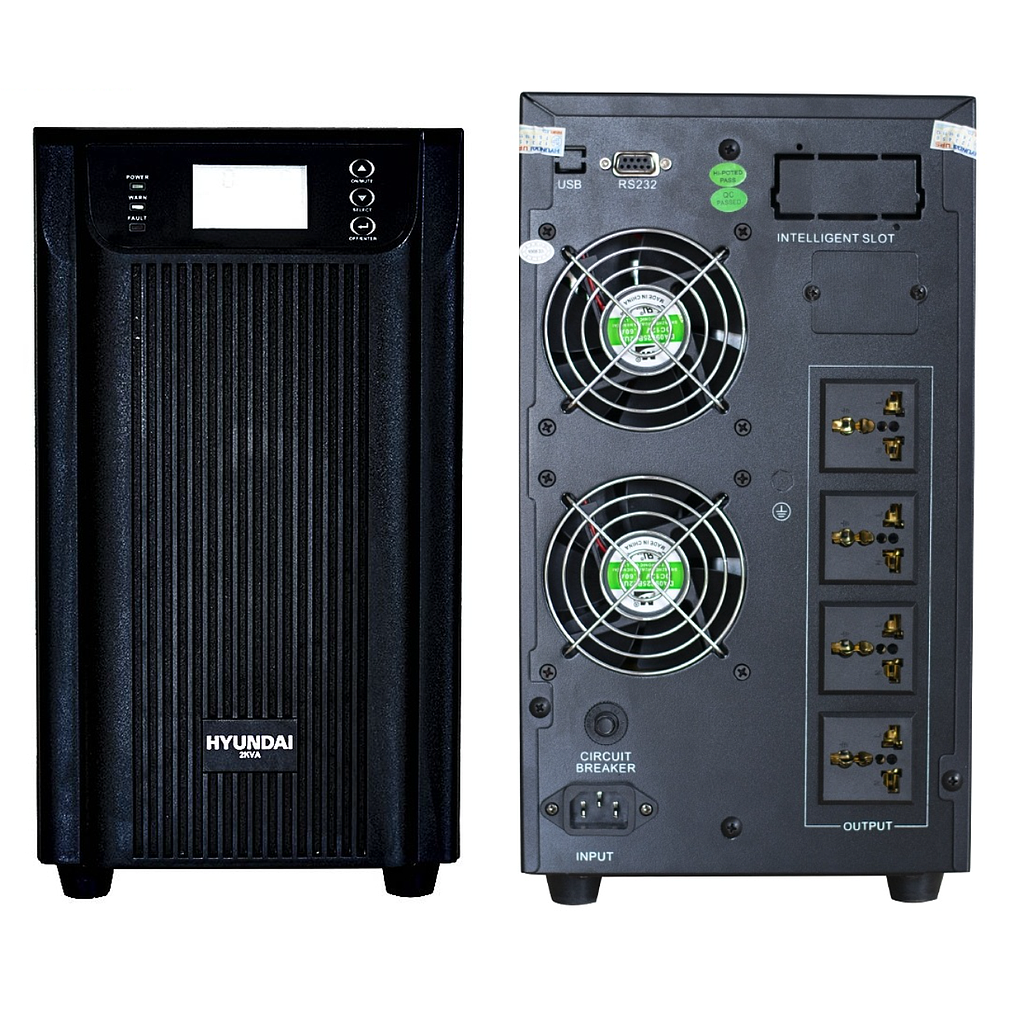

Hyundai HD-2KT9 Online Uninterruptible Power Supply (2KVA / 1.8KW)

Specifications

Rated power (KVA/KW): 2/1.8

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 220

Voltage range (VAC): 110-300

Frequency range (Hz): 40-70

Number of phases: 1

Output specification

Voltage (VAC): 220 ±1% VAC

Frequency (Hz): Main mode (46 – 54Hz)/ (56 – 64Hz); Battery mode 50 (± 1%)Hz/ 60 (± 1%)Hz

Switching time (second): 0 second, switch from inverter to bypass in 0 second

Waveform: Standard sine wave

Connection port

Communication port: RS-232

Battery

Quantity and type: 6 x 7 Ah x 12V

Power backup time (100% load): 6-10 minutes

Charging time: reaches 90% within 8 hours of charging

Dimension & Weight

Product dimensions (mm): 192 x 348 x 460 (L x W x H)

Weight: 25kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
