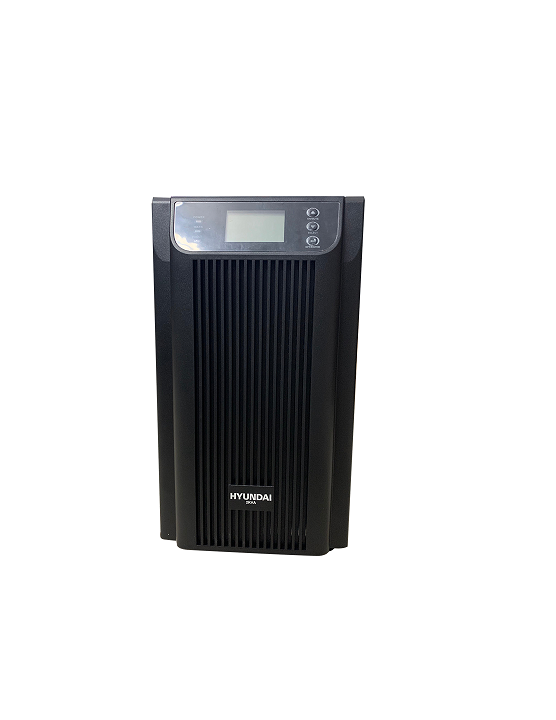

Hyundai HD-2KT8 Online Uninterruptible Power Supply (2KVA/1.6KW)

Specifications

Rated power (KVA/KW): 2/1.6

Noise level (dBA): <54

Input specification

Nominal voltage (VAC): 220/230/240

Voltage range (VAC): 11-300

Frequency range (Hz): 40 - 70, 50/60

Number of phases: 1

Power factor: ≥0.99

Output specification

Voltage (VAC): 220/230/240 ± 1%

Frequency (Hz): 50/60

Transfer time (second): 0 second

Inverter to bypass: 1ms

Waveform: pure sine wave

Battery

Quantity and type: 12V x 7Ah

Backup time: 70% load: 11-12mins/ 80% load: 10-11mins/ 90% load: 9-10mins/ 100% load: 8-9mins

Dimension & Weight

Product dimensions (mm): 192 x 348 x 460 (W x H x D)

Weight: 24.7kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
