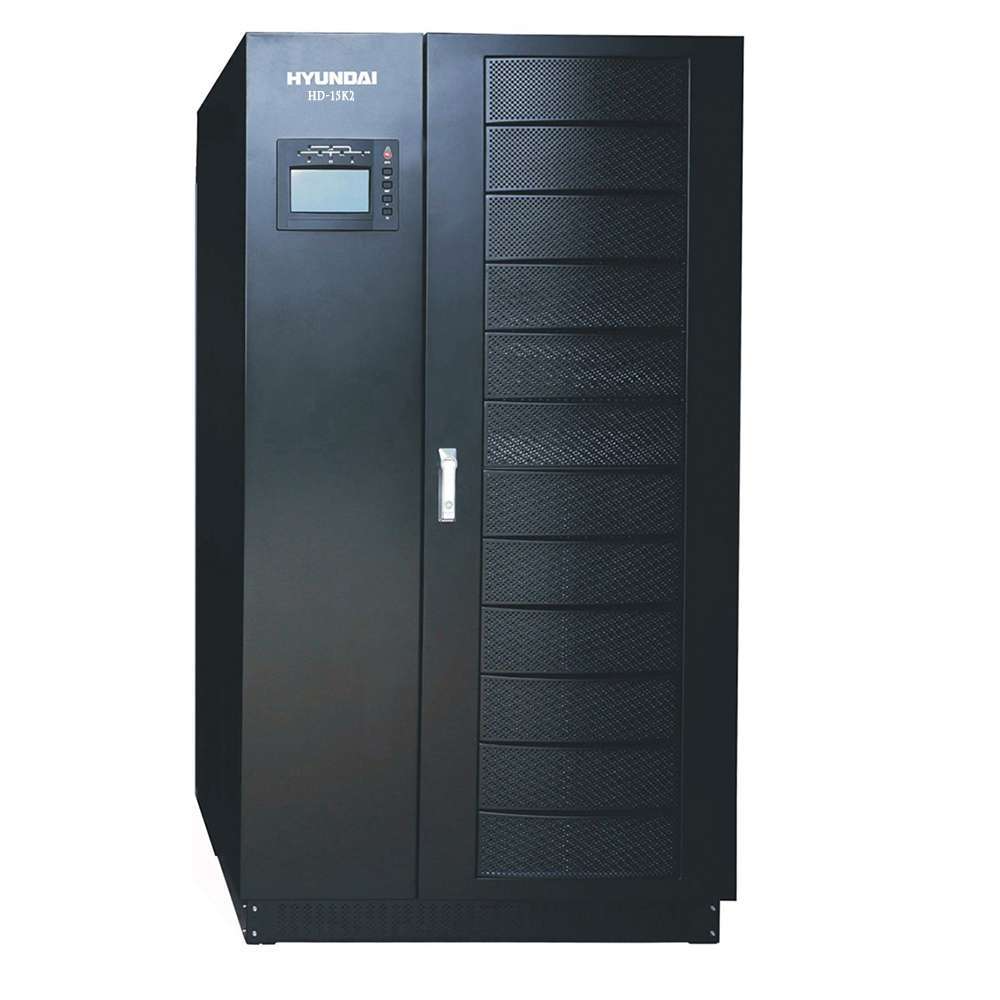

Hyundai HD-15K2 Online Uninterruptible Power Supply (15KVA/ 13.5KW)

Specifications

Rated power (KVA/KW): 15/13.5

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 207-467

Voltage range (VAC): 207-467

Frequency range (Hz): 46-64

Number of phases: 3P + G + 4W

Output specification

Voltage (VAC): 208/220/230/240 ±1% VAC

Frequency (Hz): Main mode (46 – 54Hz)/ (56 – 64Hz); Battery mode 50 (± 0.1%)Hz/ 60 (± 1%)Hz

Switching time (second): 0 second

Waveform: Standard sine wave

Battery

Quantity and type: 12V x 16VAC

Dimension & Weight

Product dimensions (mm): 248 x 500 x 616 (L x W x H)

Weight: 34kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
