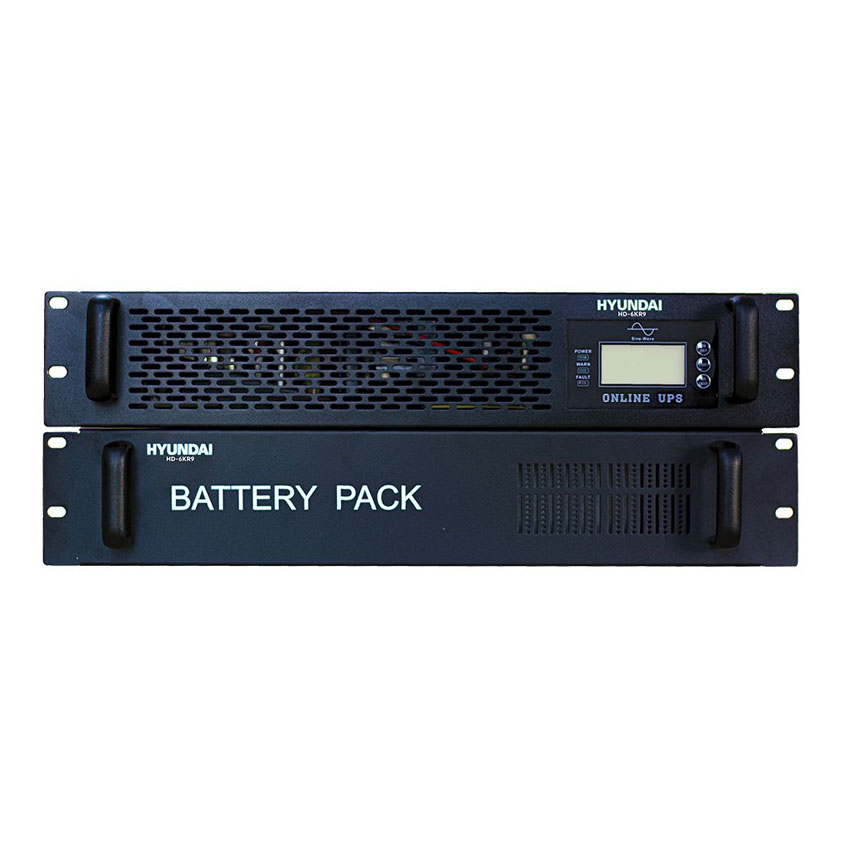

Hyundai HD-10KR9 Online Uninterruptible Power Supply (10KVA/9KW)

Specifications

Rated power (KVA/KW): 10/9

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 220

Voltage range (VAC): 120-276

Frequency range (Hz):46-54

Number of phases: 1

Output specification

Voltage (VAC): 208/220/230/240 ±1% VAC

Frequency (Hz): Line mode (50/60 Hz ± 4); Battery mode (50/60 ± 0.2Hz)

Switching time (second): 0 second

Waveform: Standard sine wave

Connection port

Communication port: RS-232

Battery

Power backup time (100% load): 7 minutes

Quantity and type: 16x12VDC

Dimension & Weight

Product dimensions (mm): 480 x 600 x 132 (L x W x H)

Weight: 60kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
