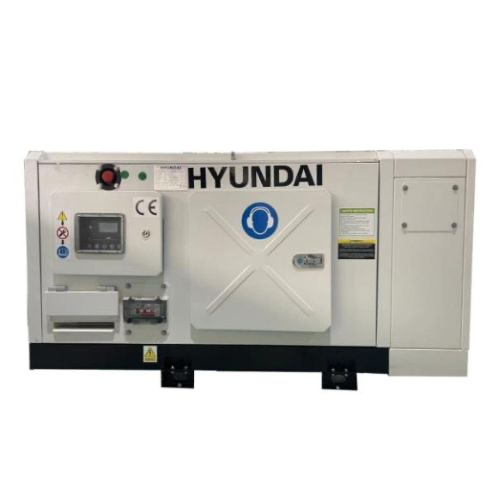

Hyundai DHY9KSV Diesel Generator (8.5/9.35 kW)

Generator

Continuous Power (kVA/kW): 8.5/8.5

Standby Power (kVA/kW): 9.35/9.35

Operating Frequency (Hz): 50

Rated Voltage (V): 230

Current (A): 38.6

Fuel Tank Capacity (L): 40

Fuel Consumption at 75%/100% Load (L/h): 2.2/3.2

Continuous Running Time (h): 12

Noise Level at 7m (dBA): 68

Battery (V/DC): 12

Dimensions (mm): 1600x740x825

Total Weight (kg): 552

Engine

Engine Model: 4DW81-23D

Speed (RPM): 1500

Engine Type: 4-stroke Diesel

Compression Ratio: 18.5:1

Governor: Electronic

Starting System: Electric Start

Lubricating Oil Capacity (L): 7.8

Lubricating Oil Consumption (L/h): 0.04

Coolant Capacity (L): 4.85

Cooling System: Water-cooled

Filtration System: Air, Fuel, and Oil Filters

Exhaust Gas Flow (m³/min): 4.7

Exhaust Gas Temperature (°C): 470

Engine Dimensions (mm): 700x555x680

Net Weight (kg): 220

Alternator

Alternator Model: 164B

Phase: Single-phase, 2-wire

Power Factor (cos φ): 1

Insulation Class: H

Protection Class: IP23

TIF: <50

THF: <2%

Voltage Regulation: Automatic AVR, SX460 Mode

Control Panel

Deepsea Control Panel: DSE6120

Operation Buttons: Stop/Manual/Auto/Start/Run/Up & Down

Overload Protection: Yes, Automatic Emergency Shutdown

Standard Protection Level: IP65, BS EN 60529

DC Output (V): 12

Remote Control: Yes

ATS Controller: Yes
