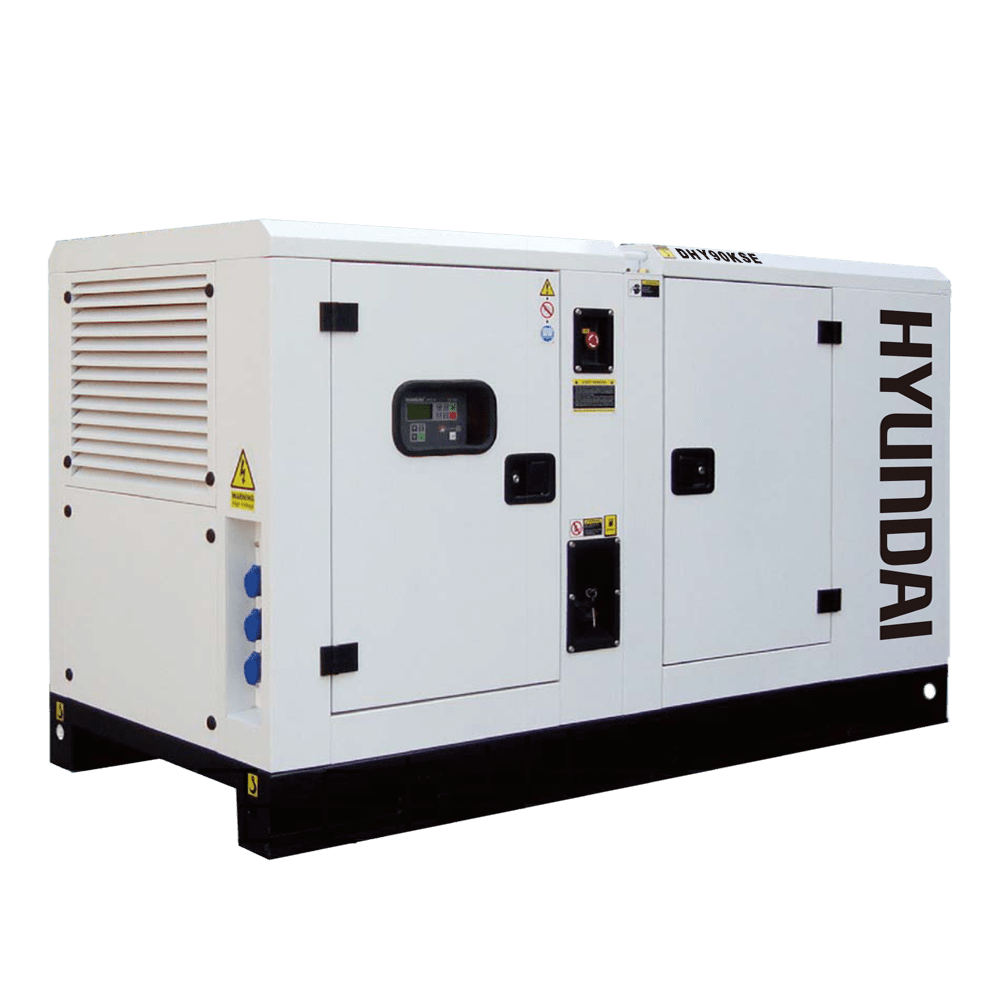

Hyundai DHY90KSE Diesel Generator (82Kva , three-phase)

GENERATOR

Continuous power (KVA/KW): 82/66

Standby power (KVA/KW): 90/72

Frequency (Hz): 50

Voltage (V): 230/400

Current (A): 118.4

ATS connection port: Yes

Fuel tank (L): 245

Running time at 100% CS load (h): 13

Noise level 7m away (dBA): 72 (+-5)

Overall weight (kg): 1530

Dimensions L×W×H (mm): 3400x1000x1700

ENGINE

Power (KW/1500 million/mn): 70

Rotation speed: 1500 V/Ph

Speed adjustment: Mechanical

Cooled by water and fan

Cylinder capacity (L): 475

Number/model: Cylinder 4L

ĐKxHC Piston: 110×125

Compression ratio: 17.5:01

Lubricating oil capacity (L): 11

Coolant capacity (L): 13

Fuel consumption at 100% load (L/h): 19.6

Battery (Ah): 110Ah

ALTERNATOR

Continuous power (KVA): 85

Number of phases: 3 phases

Power factor (Cosφ): 0.8

Voltage regulation: Automatic AVR with AS440

Protection level: IP23

Insulation level: Class H

Excitation system: Automatic
