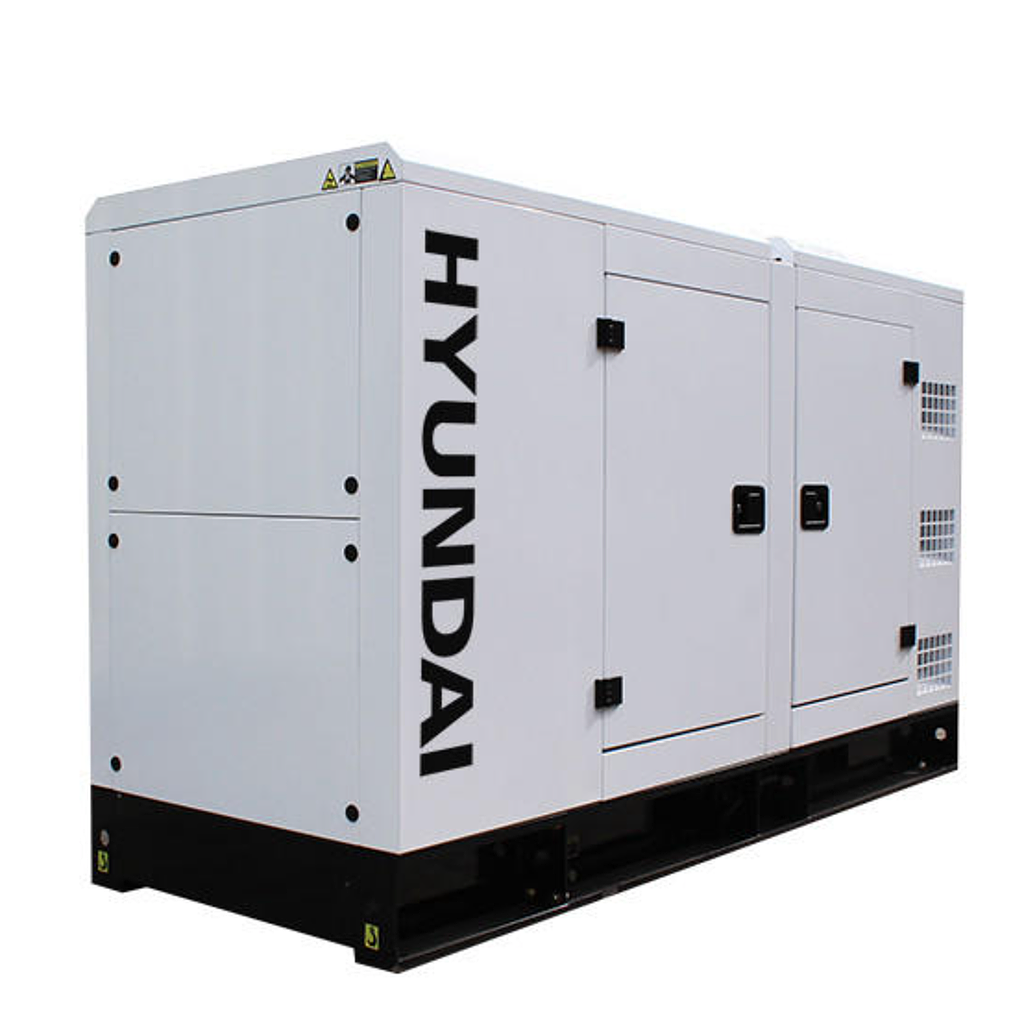

Hyundai DHY85KSE Diesel Generator (78 KVA/ 62 KW, 3 phase)

Rated/Prime kVA*: 78

Rated/Prime kW: 62

Max/Standby kVA*: 85

Max/Standby kW11: 68

Phase: three

Voltage: 230/400

Connection Method(s): busbar

Rated Speed (RPM): 1500

Frequency (Hz): 50

Max/Continuous Current (Amps): 123/111

Power Factor (Cosφ): 0.8

Fuel/Power Source: Diesel

Fuel Tank (Litres): 180

Runtime (Hours) @ 100% Load: 10.17

Noise Level @ 1m 75%load (dB): 75

Noise Level @ 7m 75% load (dB): 70

Hyundai Diesel Engine Mode: HY4A100Z D20

Power Output (kw): 70

Displacement (CC): 4840

No. of Cylinders: 4

Displacement (litres): 4.84

Recommended Oil Type: SAE 15W40

Oil Capacity (Litres): 13

Oil Filter Part No.: 530-1012240

Aspiration: Turbocharged

Fuel Regulation/Governor System: Electronic

Fuel Filter Part No.: 6105QA-1105300A

Cooling: Water

Breakers: CDM1L-225L-125A- 4310

Alternator Type: Brushless

Voltage Regulation: AVR

Air Filter Part No.: B9600-1109101*-937

Net Weight (kg): 1450

Gross Weight (kg): 1450

Dimensions L x W x H (mm): 2500 x 950 x 1500

Battery (Ah): 1x12V-60Ah

ATS / MTS Compatible: Yes

Control Panel: ComAp MRS10
