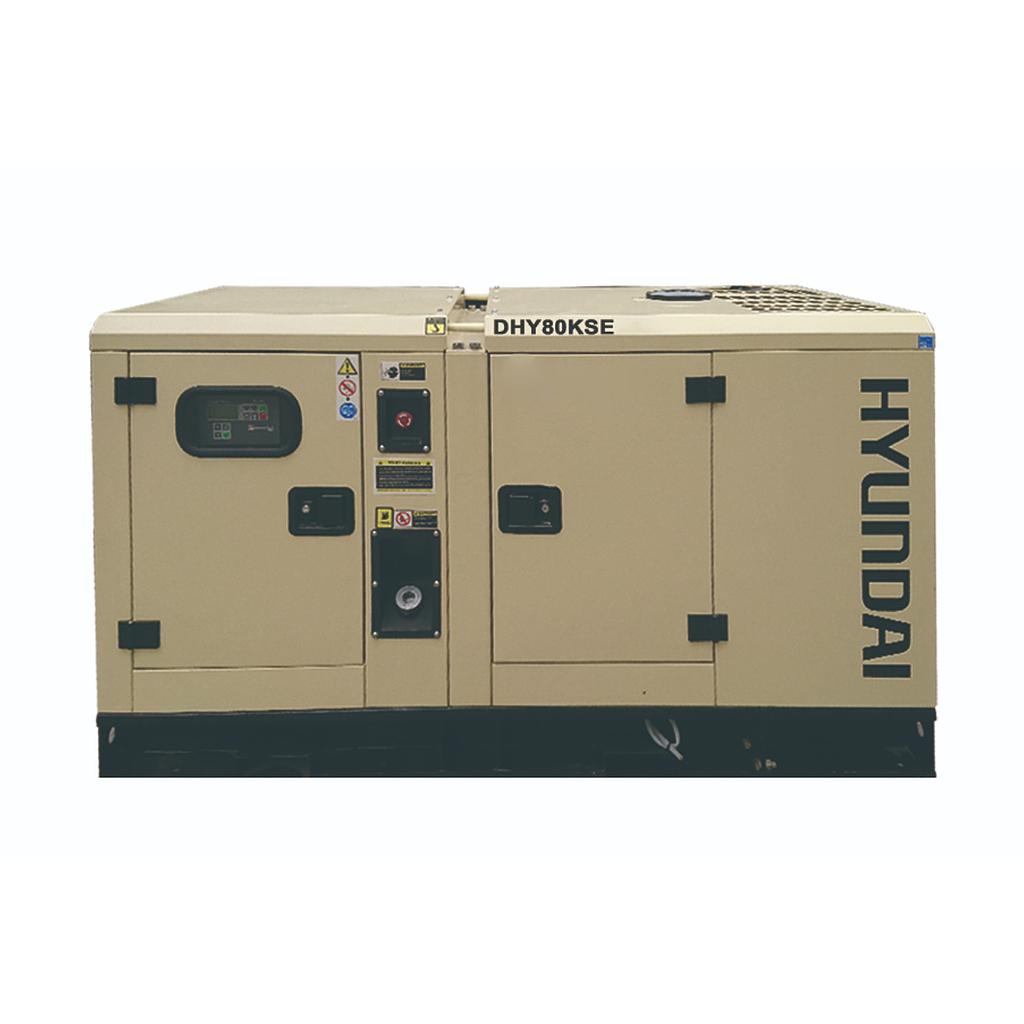

Hyundai DHY80KSE Diesel Generator (70Kva/ three-phase)

GENERATOR

Continuous power (KVA/Kw): 70/56

Standby power (KVA/Kw): 77/61.1

Frequency (Hz): 50

Voltage (V): 230/400

Current (A): 112

ATS connection port: Yes

Starting battery: 160Ah

Fuel tank (L): 250

Noise level 7m away (dBA): 75(+-5)

Overall weight (kg): 1850

Dimensions L×W×H (mm): 2950 x 1040 x 1650(mm)

ENGINE

Power (KW): 60

Rotation speed: 1500 V/Ph

Speed adjustment: Electric

Cylinder capacity (L): 8.3

Cylinder number/model: 6L

Piston size: 114×135

Compression ratio: 17

Lubricating oil capacity (L): 23.8

Cooling water capacity (L): 41.3

Fuel consumption at 100% load (L/h): 47.5

ALTERNATOR

Type: Brushless

Continuous power (KVA): 70

Number of phases: 3 phases

Power factor (Cosφ): 0.8

Voltage regulation: Automatic AVR with 5A

Insulation level: Class H

Excitation system: Automatic
