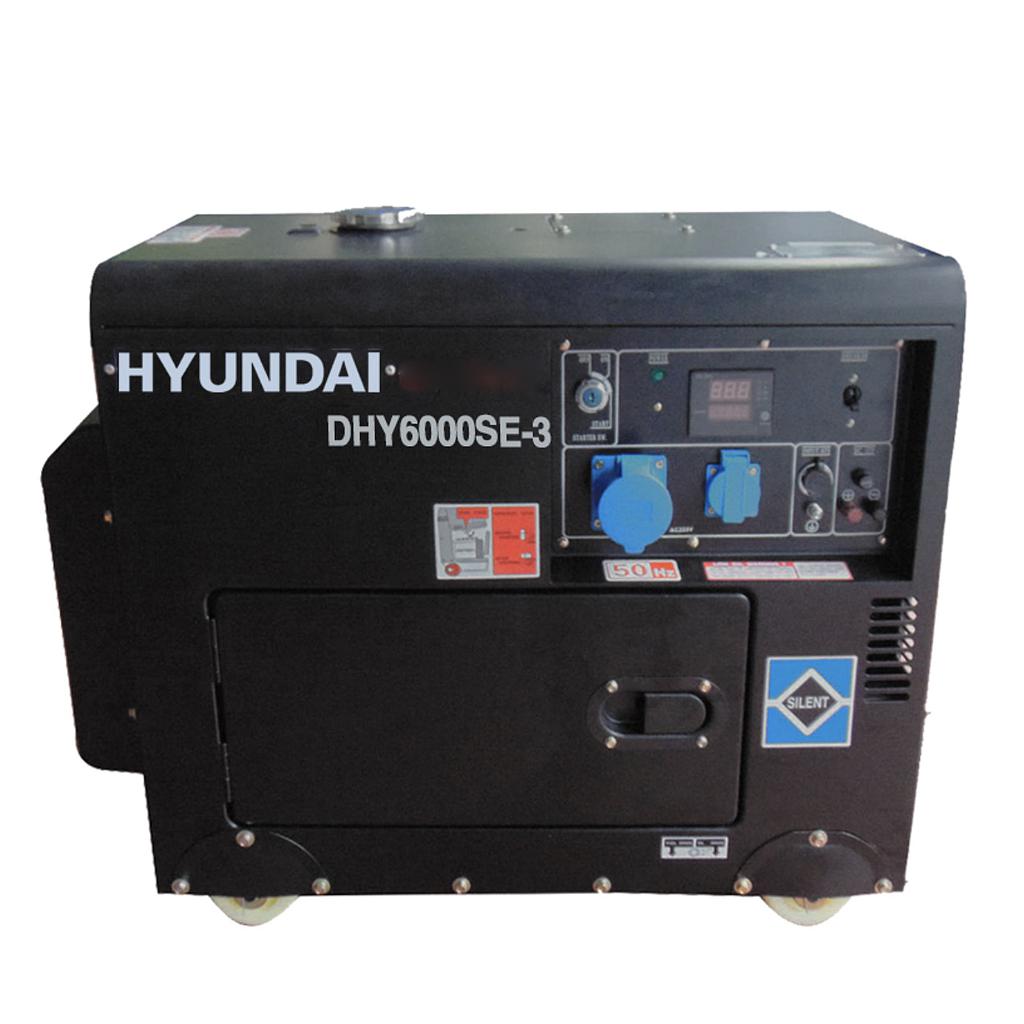

Hyundai DHY6000SE-3 Diesel Generator (6.3 kVA/ three-phase)

GENERATOR

Continuous Power (KVA): 6.3

Standby Power (KVA): 7.3

Frequency (Hz): 50

Voltage (V): 220/380

Current (A): 11.1

Phases: 3

ATS Connection Port: Yes

Fuel Tank Capacity (L): 15

Noise Level at 7m (dBA): 72

Fuel Consumption at 100% Load (L/h): 2.2

Continuous Running Time at 50% Load: 12 hours

Total Weight (kg): 165

Dimensions (L×W×H) (mm): 900x520x700

ENGINE

Model: D450

Rotation Speed: 3000 RPM

Type: 4-stroke diesel engine

Starting System: Electric Start

Cylinder Displacement (CC): 456

Lubricating Oil Capacity (L): 1.65

ALTERNATOR

Model: AL6-3

Continuous Output Power (KW): 7.5

Power Factor (Cosφ): 0.8

Voltage Regulation: Brush/AVR
