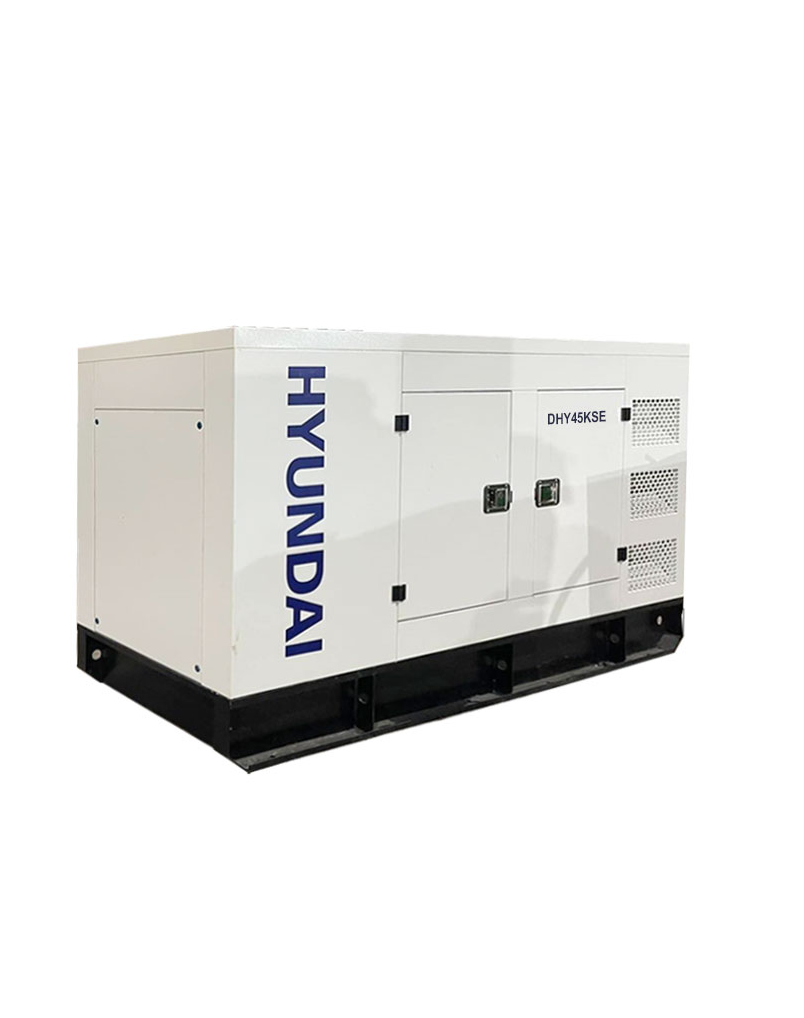

Hyundai DHY45KSE Diesel Generator (40KVA/32KW 3 pha)

Rated/Prime kVA*: 40

Rated/Prime kW: 32

Max/Standby kVA*: 45

Max/Standby kW: 35

Phase: three

Voltage: 230/400

Connection Method(s): 2 x 230V/32A, 1 x 230vV/63A Busbar

Rated Speed (RPM): 1500

Frequency (Hz): 50

Max/Continuous Current (Amps): 64/57

Power Factor (Cosφ): 0.8

Fuel/Power Source: Diesel

Fuel Tank (Litres): 93

Runtime (Hours) @ 100% Load: 9.12

Noise Level @ 1m 75%load (dB): 72

Hyundai Diesel Engine Mode: HY4DX21-53D

Power Output (kw): 39

Engine Displacement (CC): 3860

No. of Cylinders: 4

Displacement (litres): 3.86

Recommended Oil Type: SAE 15W40

Oil Capacity (Litres): 11

Oil Filter Part No.: 1012101-A02-0000H

Aspiration: Natural

Fuel Regulation/Governor System: mechanical

Fuel Filter Part No.: 1117101-A01-0001H

Cooling: Water

Breakers: 3P+N C63A 100mA

Alternator Type: Brushless

Voltage Regulation: AVR

Air Filter Part No.: DHP-0029-04

Net Weight (kg): 1045

Gross Weight (kg): 1045

Dimensions L x W x H (mm): 2200 x 950 x 1250

Battery (Ah): 1x12V-45Ah

ATS / MTS Compatible: Yes

Control Panel: ComAp AMF9
