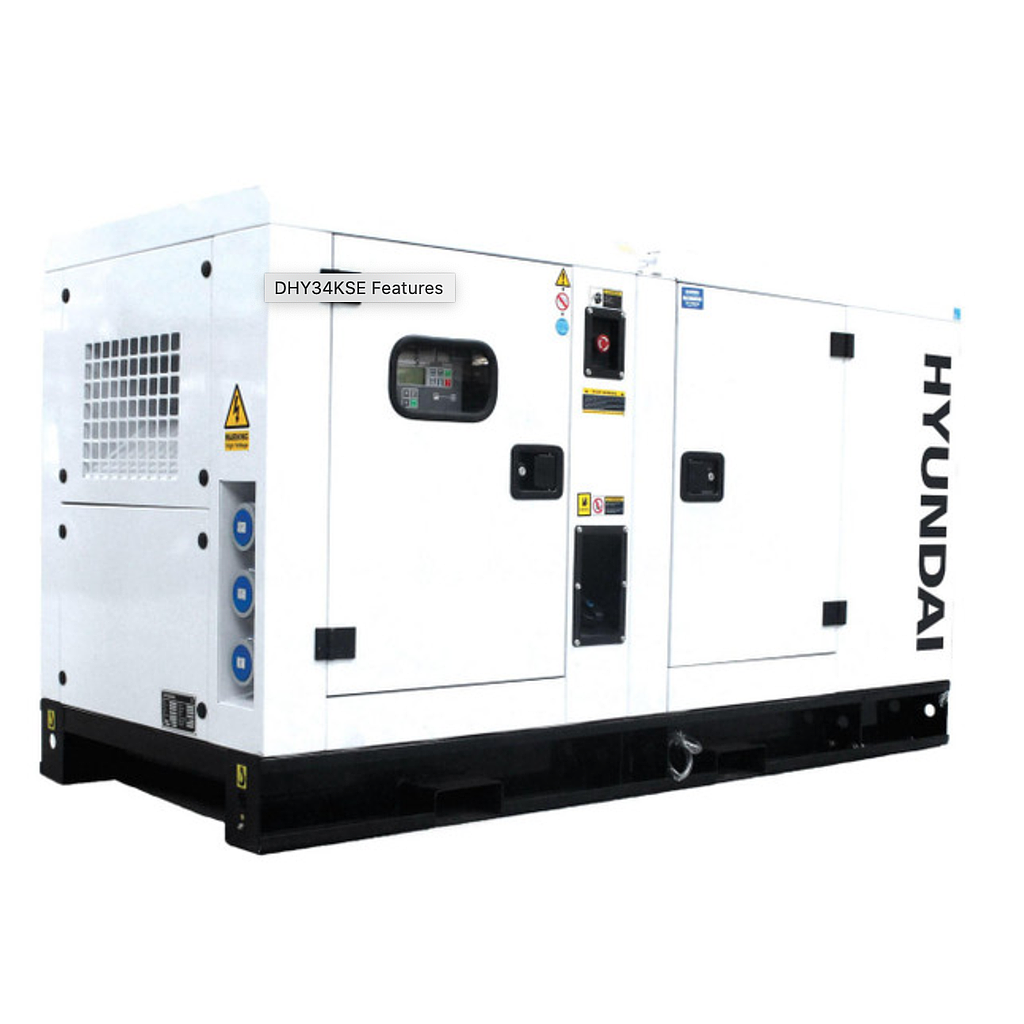

Hyundai DHY34KSE Diesel Generator (30/24 KVA/KW)

Generator

Continuous Power (KVA/KW): 30/24

Standby Power (KVA/KW): 33/26.4

Frequency (Hz): 50

Voltage (V): 230/400

Current (A): 47.48

ATS Connection Port: Yes

Fuel Tank Capacity (L): 131

Fuel Consumption at 100% Load (L/h): 8.6

Running Time at 70% Load (h): 20

Noise Level at 7m (dBA): 72

Total Weight with Enclosure (kg): 911

Dimensions with Enclosure (L×W×H) (cm): 2188×900×1280

Engine

Model: 4H3.2-G2

Power Output (KW/1500 RPM): 32

Speed (RPM): 1500

Configuration: 4-cylinder inline

Compression Ratio: 18:1

Displacement (L): 3.2

Cooling System: Water-cooled with fan

Coolant Capacity (L): 5.8

Lubricating Oil Capacity (L): 6

Lubricating Oil Consumption at 100% Load (L/h): 0.047

Battery (Ah): 1×12V-60Ah

Intake Air Flow (m³/min): 3.4

Exhaust Gas Flow (m³/min): 9.2

Exhaust Gas Temperature (℃): 550

Engine Dimensions (mm): 916×551×733

Net Weight (kg): 275

Alternator

Model: 184G

Bearing Type: Single bearing

Phase: 3-phase

Power Factor (Cosφ): 0.8

Voltage Regulation: Automatic AVR with SX460

Protection Class: IP23

TIF (Transient Interference Factor): <50

THF (Total Harmonic Factor): <2%

Insulation Class: Class H

Excitation System: Automatic

AVR Model: SX460
