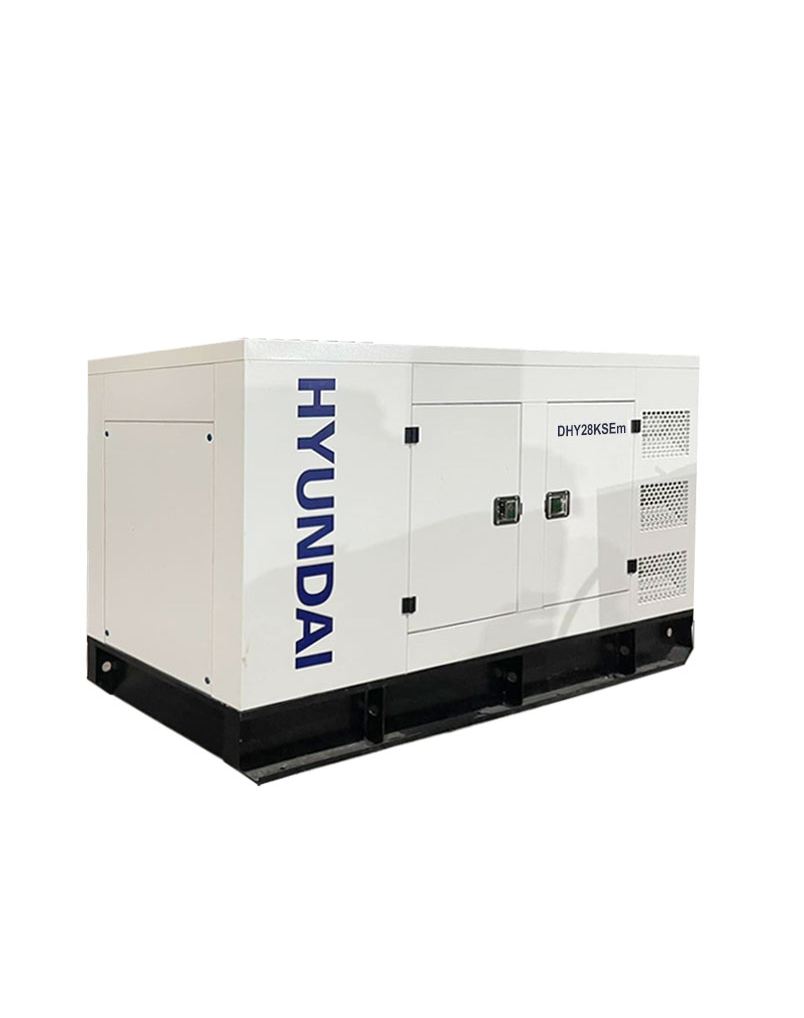

Hyundai DHY28KSEm Diesel Generator (25kW, 1 phase, 230V)

General Specifications

Prime Power Output (kW): 25

Standby Power Output (kW): 28

Frequency (Hz): 50

Voltage (V): 230

Current (A): 109

ATS Port: Available

Battery: 2 × 60 Ah

Fuel Tank Capacity (L): 115

Coolant Capacity (L): 10.2

Fuel Consumption (at 50% / 100% load): 5.2 / 10.5 L/h

Continuous Operating Time (50% / 100% load): 18 / 11 hours

Noise Level at 7m (dBA): 68

Total Weight (kg): 1030

Dimensions (L × W × H) (mm): 2230 × 930 × 1500

Engine

Model: HY4102

Power Output (kW @1500rpm): 32

Speed: 1,500 RPM

Governing System: Mechanical

Number of Cylinders: 4

Starting Method: Electric Start

Displacement (cc): 3800

Compression Ratio: 18:1

Lubricating Oil Capacity (L): 8.2

Alternator

Model: 184H

Type: Brushless

Continuous Power Output (kW): 25

Power Factor (Cosφ): 1

Insulation Class: H

Protection Class: IP23

Voltage Regulation: Automatic (AVR)

Control & Monitoring System

Control Panel Model: ComAp AMF20

Monitoring Functions:

Current Display: Yes

Frequency Display: Yes

Phase & Neutral Voltage Display: Yes

Power Factor Display: Yes

Automatic Fuel Level Adjustment: Yes

Oil Pressure Warning: Yes

High Coolant Temperature Warning: Yes

Battery Voltage Display: Yes

Engine Speed Display: Yes

Engine Hour Counter: Yes

Supervision Functions:

Output Relay Monitoring: Yes

LCD Brightness Adjustment: Yes

PIN Code Protection: Yes

Multilingual Support: Yes

Protection and Auto Shutdown Functions

High/Low Voltage Alarm: Yes

High/Low Frequency Alarm: Yes

Over/Under Speed Protection: Yes

Low Oil Pressure Alarm: Yes

High Engine Temperature Alarm: Yes

High/Low Battery Voltage Alarm: Yes

Overcurrent Protection: Yes

Start Delay Time Adjustment: Yes
