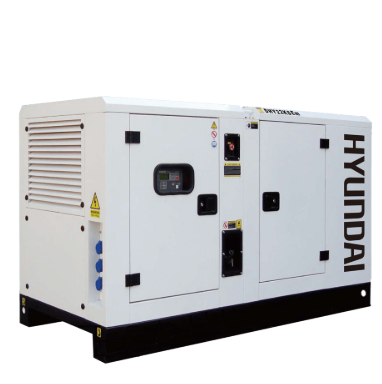

Hyundai DHY22KSEm Diesel Generator (20/22 kVA/kW)

Generator

Continuous Power Output (kVA/kW): 20/22

Standby Power Output (kVA/kW): 22/22

Power Factor: 1.0

Operating Frequency: 50 Hz

Voltage: 220 – 230 V

Current: 90.9 A

Phase & Wiring: Single-phase – 2 wires

Starting Method: Electric Start

ATS Connection Port: Yes

Fuel Tank Capacity: 45 L

Fuel Consumption at 100%/75% Load: 9.0/6.75 L/h

Noise Level at 7m Distance: 68 dB

Dimensions (L×W×H): 1800x740x825 mm

Total Machine Weight: 625 kg

Engine

Model: HY4DW92

Starter Motor Power: 3.0 kW

Speed: 1500 RPM

Fuel Type/Fuel Injection: Diesel/Direct Injection

Configuration: 4 Cylinders, Inline

Compression Ratio: 18.5:1

Displacement: 2.545 L

Lubricating Oil Capacity: 8 L

Lubricating Oil Consumption: 0.05 L/h

Cooling System: Water-Cooled

Coolant Capacity: 5.15 L

Exhaust Gas Flow Rate: 6.4 m³/min

Exhaust Gas Temperature: 450°C

Exhaust Back Pressure: ≤ 6.7 KPa

Engine Dimensions (L×W×H): 700x590x680 mm

Engine Weight: 240 kg

Alternator

Model: 184FL

Phase: Single-phase

Continuous/Standby Power Output: 20/22 kVA

Structure: Single Bearing

Power Factor: 1.0

Protection Class: IP23

Insulation Class: H

Voltage Regulation: Automatic AVR SX460
