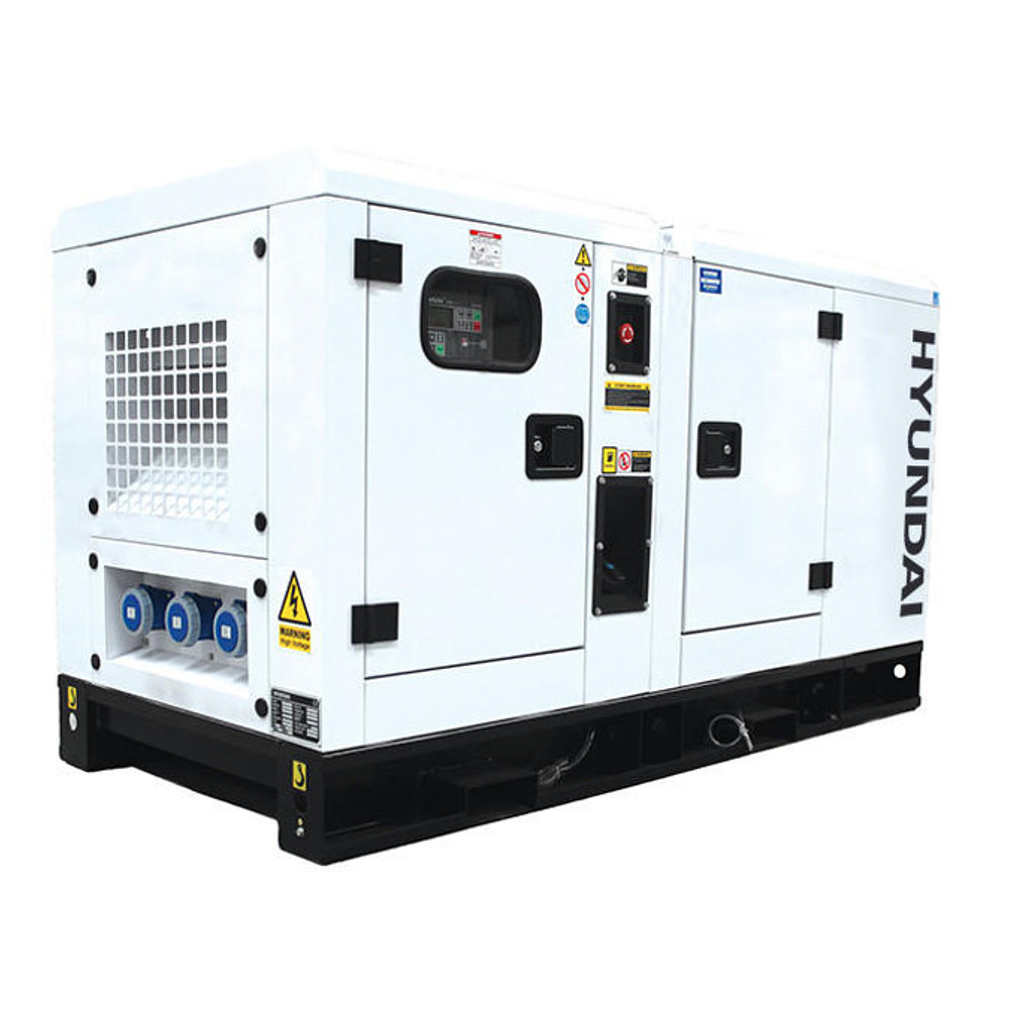

Hyundai DHY22KSE Diesel Generator (20/16 kVA/kW)

Continuous Power (kVA/kW): 20/16

Standby Power (kVA/kW): 22/17.6

Power Factor: 0.8

Frequency (Hz): 50

Voltage (V): 230/400

Current (A): 30.39

ATS Connection Port: Yes

Fuel Tank Capacity (L): 78

Fuel Consumption (L/h): 6

Running Time at 70% Load (h): 14

Noise Level at 7m (dBA): 72

Total Weight (kg): 819

Dimensions (L×W×H) (mm): 2008×900×1130

Engine

Model: 4H2.7-G2

Speed (RPM): 1500

Fuel Type: Diesel

Configuration: 4 cylinders, inline

Compression Ratio: 18:1

Cooling System: Water-cooled with fan

Coolant Capacity (L): 8

Lubricating Oil Capacity (L): 6

Lubricating Oil Consumption (L/h): 0.032

Intake Air Flow (m³/min): 2.3

Exhaust Gas Flow (m³/min): 5.7

Exhaust Gas Temperature (°C): 480

Exhaust Back Pressure (KPa): 10

Engine Dimensions (mm): 953×522×728

Engine Weight (kg): 260

Alternator

Model: 184ES

Alternator Power (kVA): 23

Phase: 3-phase

Bearing Type: Single bearing

Power Factor (Cosφ): 0.8

Voltage Regulation: Automatic AVR with AS440

Protection Class: IP23

Insulation Class: Class H

Excitation System: Automatic
