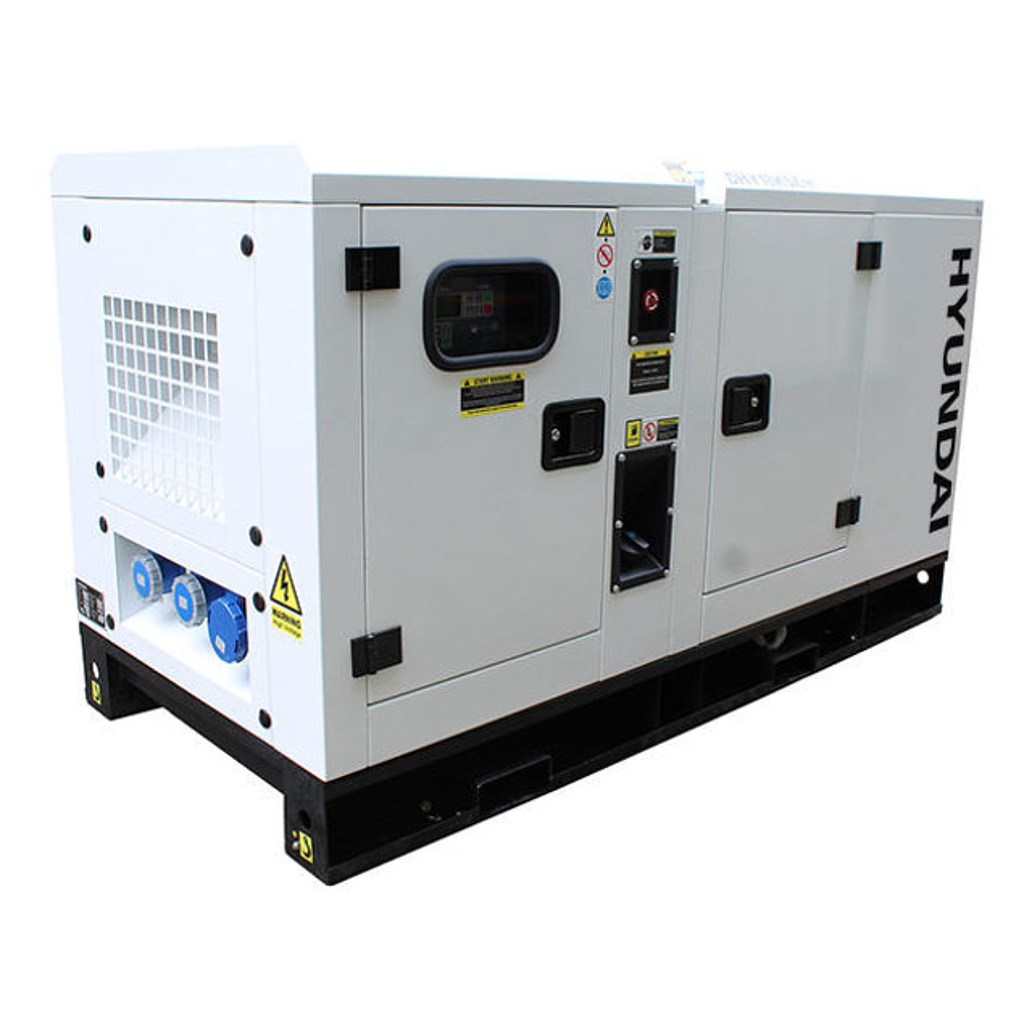

Hyundai DHY18KSEm Diesel Generator (16.4/16.4 kVA/kW)

Generator

Model: DHY18KSEM

Continuous Power Output (kVA/kW): 16.4/16.4

Standby Power Output (kVA/kW): 18/18

Operating Frequency (Hz): 50

Power Factor: 1.0

Voltage (V): 230

Current (A): 71

Phase & Wiring: Single-phase – 2 wires

Starting Method: Electric Start

ATS Connection Port: Yes

Fuel Tank Capacity (L): 45

Fuel Consumption at 100% Load (L/h): 6.94

Continuous Operation Time at 70% Load (h): 11

Noise Level at 7m Distance (dB): 68

Control Voltage (V/DC): 12

Dimensions (L×W×H) (mm): 1600×740×825

Total Machine Weight (kg): 620

Engine

Model: HY4DW91

Fuel Type: Diesel

Configuration: 4 Cylinders

Compression Ratio: 18.5:1

Displacement (L): 2.67

Lubricating Oil Capacity (L): 7.5

Lubricating Oil Consumption (L/h): 0.032

Cooling System: Water-Cooled

Intake Air Flow (m³/min): 1.49

Exhaust Gas Flow (m³/min): 3.86

Exhaust Gas Temperature (°C): 500

Exhaust Back Pressure (KPa): 6

Engine Dimensions (L×W×H) (mm): 750×550×680

Net Engine Weight (kg): 220

Alternator

Model: 184G20

Alternator Power Output (kVA): 18

Structure: Single Bearing

Phase: Single-phase

Insulation Class: H

Protection Class: IP23

Voltage Regulation: Automatic AVR SX460
