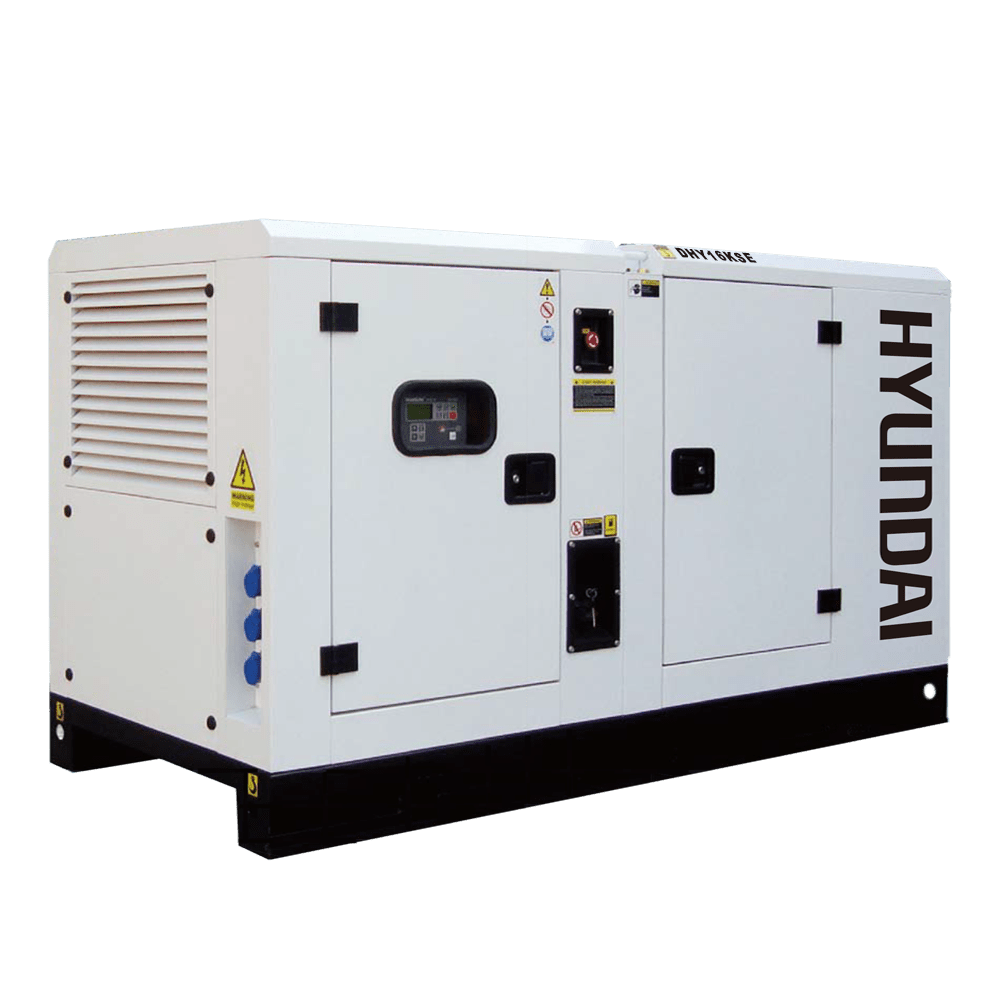

Hyundai DHY16KSE Diesel Generator (16.5KVA/ three-phase)

Generator

Continuous Power (kVA/kW): 15/12

Standby Power (kVA/kW): 16.5/13.2

Operating Frequency: 50 Hz

Power Factor: 0.8

Voltage (V): 400/230

Current (A): 22.79

Phases: 3-phase

Starting System: Electric Start

ATS Connection Port: Yes

Fuel Tank Capacity (L): 78

Fuel Consumption at 100% Load (L): 4.7

Continuous Operating Time at 70% Load: 21 hours

Noise Level at 7m: 72 dB

Battery (V): 12

Dimensions (mm): 2008x900x1130

Total Weight (kg): 750

Engine

Model: 4H2.3-G2

Fuel Type: Diesel

Configuration: 4-cylinder inline

Governing System: Electronic

Lubricating Oil Capacity (L): 5

Lubricating Oil Consumption (L/h): 0.028

Cooling System: Water-cooled

Air Intake Flow (m³/min): 1.7

Exhaust Gas Flow (m³/min): 4.2

Exhaust Gas Temperature (°C): 480

Engine Dimensions (mm): 919x565x760

Net Weight (kg): 220

Alternator

Model: 164D

Rotation Speed: 1500 RPM

Phases: 3-phase

Continuous Output Power (kVA): 16

Power Factor: 0.8

Protection Class: IP23

Insulation Class: H

Voltage Regulation: Automatic AVR with SX460
