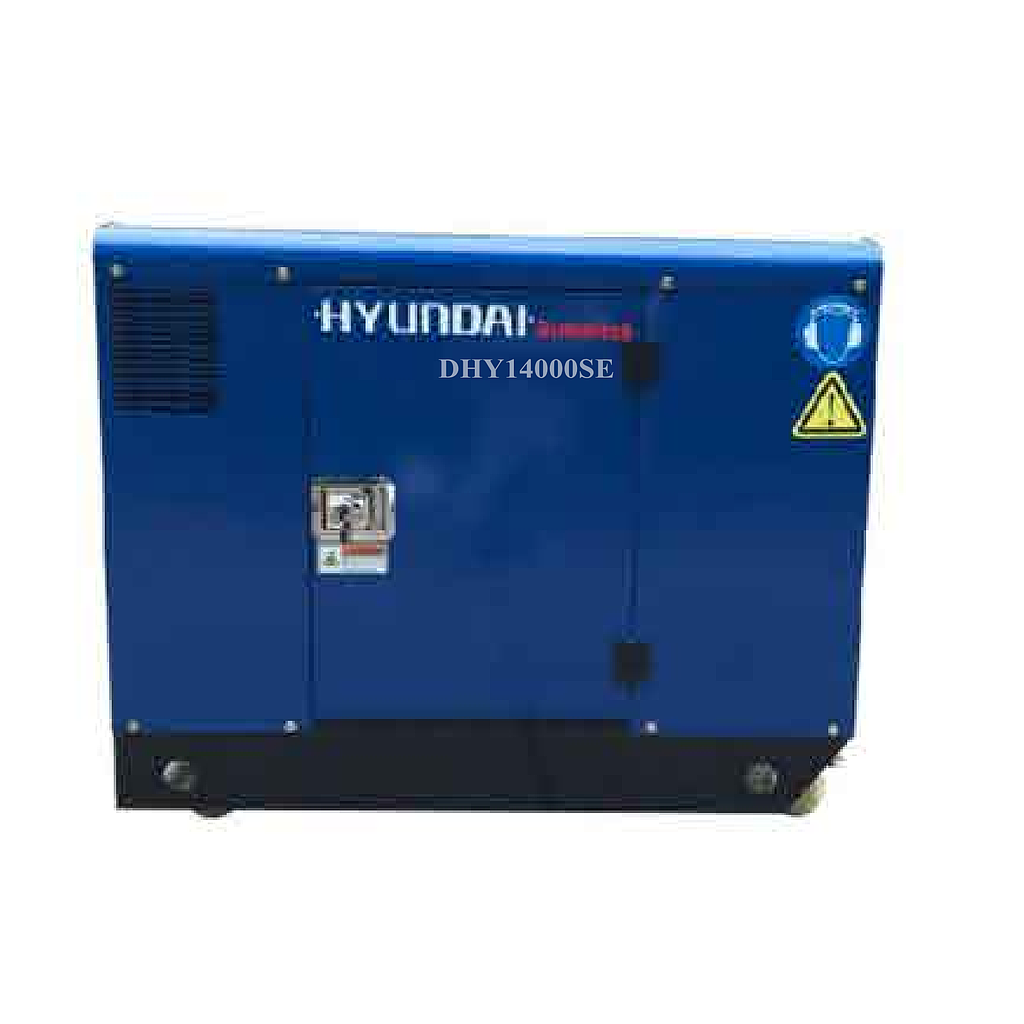

Hyundai DHY14000SE Diesel Generator (10 kVA, single phase)

GENERATOR

Continuous power (KW/KVA): 10 KVA

Standby power (KW/KVA): 11 KVA

Frequency (Hz): 50

Voltage (V): 220

Current (A): 45

Display screen: LED5

Fuel tank (L): 60

Noise level 7m away (dBA): 76

Battery: 12V/36Ah

Fuel consumption (100% CS): 4.83 L/h

Continuous run time (50% CS): 12 h

Overall weight (kg): 300

Dimensions L×W×H (mm): 1160x675x945

ENGINE

Model: LA290

Engine power (Hp): 22

Rotation speed: 3000 V/Ph

Type: Diesel engine

Start: Electric start

Cylinder capacity (CC): 836

Oil capacity (L): 1.7

ALTERNATOR

Model: AL12

Continuous power KVA: 12

Phase: 1

Power factor (Cosφ): 1

Voltage regulation: Automatic AVR

DISPLAY SYSTEM

Display screen: LED5

Voltage indicator (V): Yes

Frequency indicator (Hz): Yes

Current indicator (A): Yes

Power indicator (Kw): Yes

Report machine running time (h): Yes

Oil tank meter: Oil indicator
