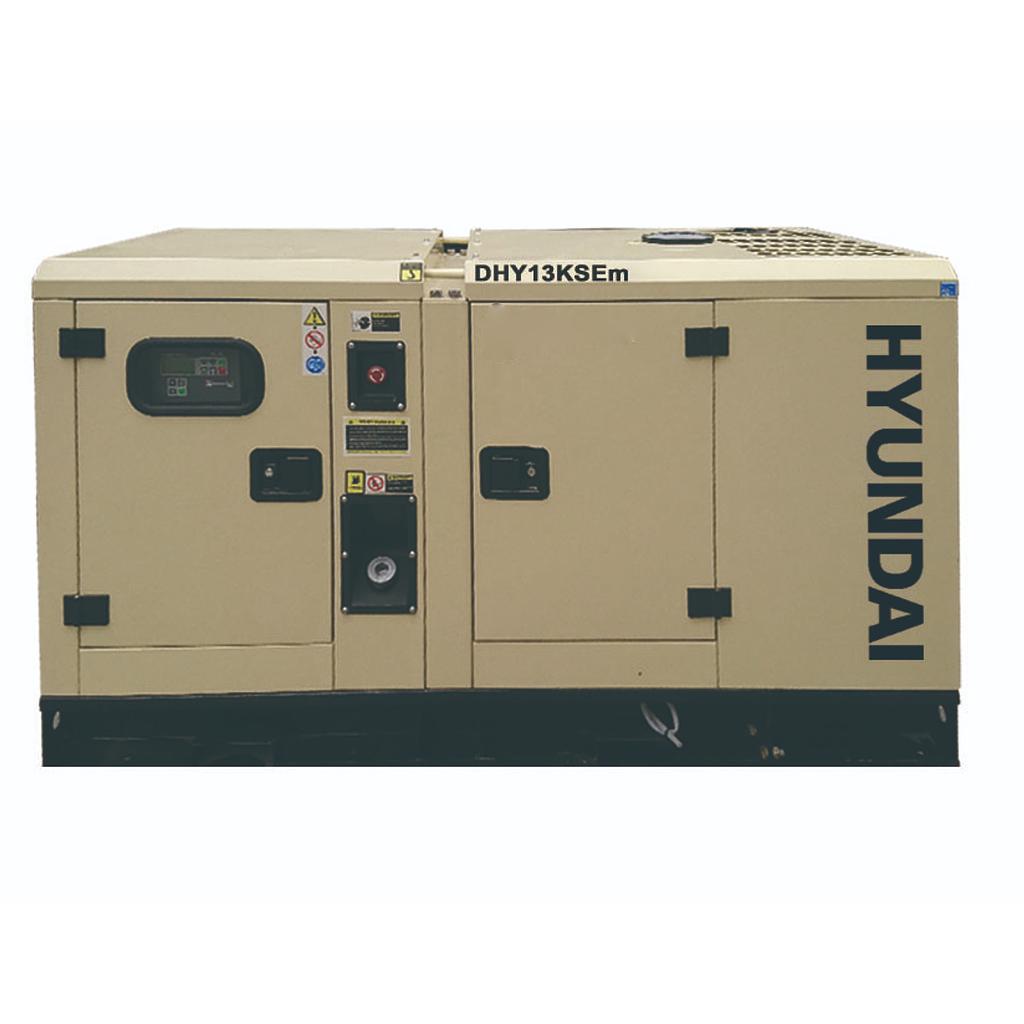

Hyundai DHY13KSEm Diesel Generator (12kw/ single phase)

Generator

Continuous Power (KW): 12.5

Standby Power (KW): 13.75

Operating Frequency: 50 Hz

Voltage: 230/400V

Current: 56.8A

Phase: 1-phase

Starting System: Electric start

ATS Connection Port: Yes

Fuel Tank Capacity: 40 liters

Continuous Operation Time at 75% Load: 11 hours

Noise Level at 7m: 68 dB

Dimensions (L×W×H): 1600×740×825 mm

Total Weight: 576 kg

Engine

Power (KW/1500 RPM): 17

Speed: 1500 RPM

Configuration: 4 cylinders

Governing System: Electronic

Lubricating Oil Capacity: 7.8 liters

Cooling Water Capacity: 4.85 liters

Engine Dimensions (L×W×H): 700×555×680 mm

Alternator

Phase: 1-phase

Rated Power: 12.8 KVA

Power Factor: 1.0

Insulation Class: H

Protection Class: IP23

Voltage Regulation: Automatic AVR with SX460
