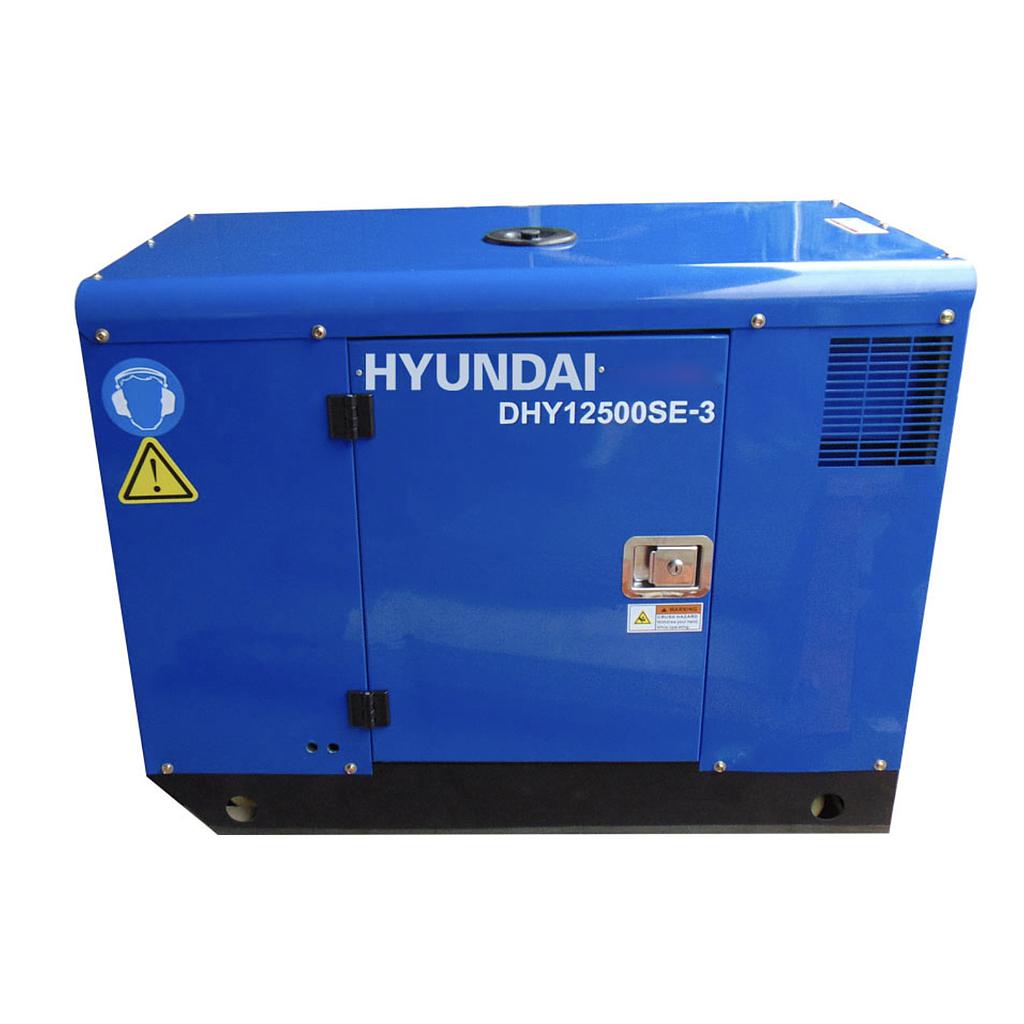

Hyundai DHY12500SE- 3 Diesel Generator (12.5Kva)

GENERATOR

Continuous power (KVA): 12.5

Standby power (KVA): 13.75

Frequency (Hz): 50

Voltage (V): 220/380

Current (A): 19

Display screen: LED5

Fuel tank (L): 60

Noise level 7m away (dBA): 76

Battery: 12V/36Ah

Fuel consumption (100% CS): 3.83 L/h

ENGINE

Continuous run time (50% CS): 12 h

Overall weight (kg): 300

Dimensions L×W×H (mm): 1160x675x945

Model LA290

Engine power (Hp): 22

Rotation speed: 3000 V/Ph

Type: Diesel engine

Start: Electric start

Cylinder capacity (CC): 836

Lubricating oil capacity (L): 1.7

ALTERNATOR

Model AL12-3

Continuous power (KVA): 13

Number of phases: 1 phase

Power factor (Cosφ): 0.8

Voltage regulation: Automatic AVR

DISPLAY SYSTEM

Display screen: LED5

Voltage alarm (V): Yes

Frequency indicator (Hz): Yes

Current indicator (A): Yes

Power indicator (Kw): Yes

Report machine running time (h): Yes

Oil tank meter: Oil indicator
