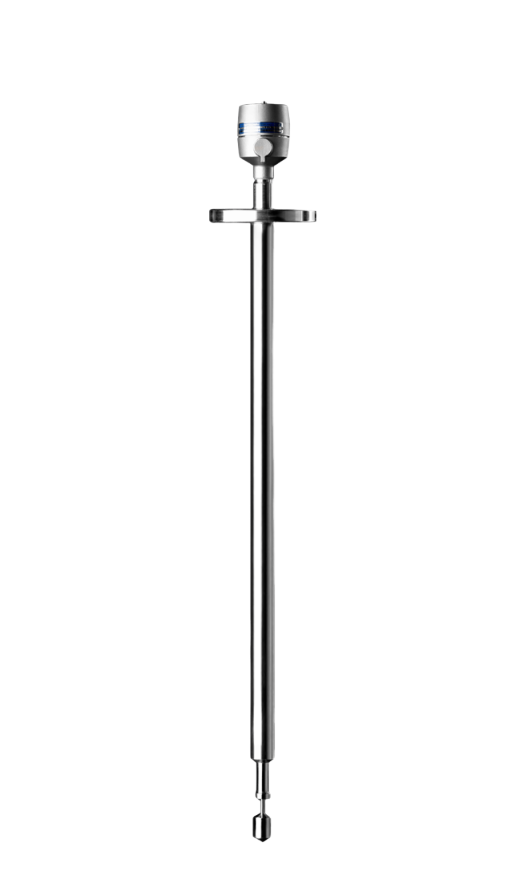

Hydramotion XL7-LR Long Reach Viscometer Sensor (0 – 1cP to 0 – 10^9)

PERFORMANCE

Range: From 0 – 1cP to 0 – 10^9 cP over 10 models

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 1 digit

Repeatability: 0.3% of reading or +/- 1 digit

TEMPERATURE

Standard Range: -50 °C to 150 °C

HT Range: -50 °C to 400 °C

Extended Range: Temperature greater than 150 / 400 °C to order*

PRESSURE

Standard Range: To process fitting

Extended Range: To order for extreme pressure *

PROCESS CONNECTION

Standard fitting: Any process fitting – all flanges, threads, clamps, hygienic

Special fitting: Non-standard process connection to order *

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length up to 1000m

Cable Type: Any standard instrument cable

Power: VP Processor powered

SAFETY CERTIFICATION

Hazardous Area: All instruments available for Ex Hazardous Area, explosive atmospheres

Ga Ex ia IIC T1…T6

CONSTRUCTION

All welded, crevice-free

MATERIALS

Head: SS316 ( EN 1.4401)

Fitting: As Required

Sensor: SS316 ( EN 1.4401) and SS316L ( EN 1.4404) as standard

Sensor/Fitting Options: Alloy C22 (EN 2.4602); Alloy C276 (EN 2.4819); S32750 Duplex Steel (EN 1.4410)

Special Materials: Non-standard materials to order *

SURFACE FINISH

Standard: N6 0.8 Ra

Finish Options: Fluoropolymer; Electropolished; Electroplated

Special Finish: Non-standard finish options and coatings to order *

INGRESS PROTECTION

Standard: IP67

SOFTWARE: ViscoLink data viewing and logging PC software
