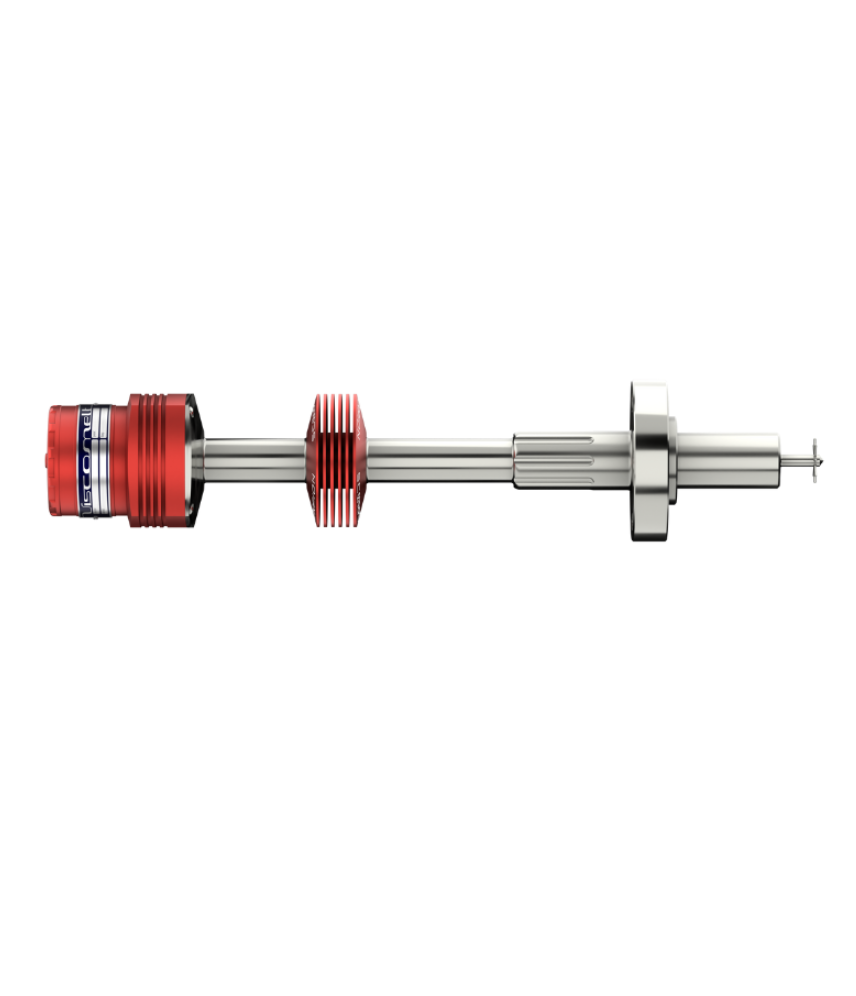

Hydramotion ViscoMelt 7 Melt Flow Sensor (1 – 10^8 Pa.S; 0 – 350 °C)

PERFORMANCE

Outputs: Dynamic viscosity, IV

Viscosity Range: 1 – 10^8 Pa.S

Measurement Time: 2 seconds

TEMPERATURE

Integral Thermometer: Integrated tip mounted temperature measurement

Temperature Range: 0 – 350 °C (32 – 662°F)*

PRESSURE

Standard Range: To process fitting

PROCESS CONNECTION

Standard Fitting: All melt pipe fittings

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length up to 1000m

Cable Type: Standard instrument cable

Power: Powered by signal processor

Power consumption: 0.5W

SAFETY CERTIFICATION

Hazardous Area:

1G Ex ia IIC T1…T6 Ga

1D Ex ia IIIC T200 135°C Da

CONSTRUCTION

Solid-state: No moving parts

SENSOR MATERIALS

Fitting: As required

Sensor: Inconel 718, Duplex stainless steel

SURFACE FINISH

Standard: N6 0.8 Ra

INGRESS PROTECTION

Standard: IP67
