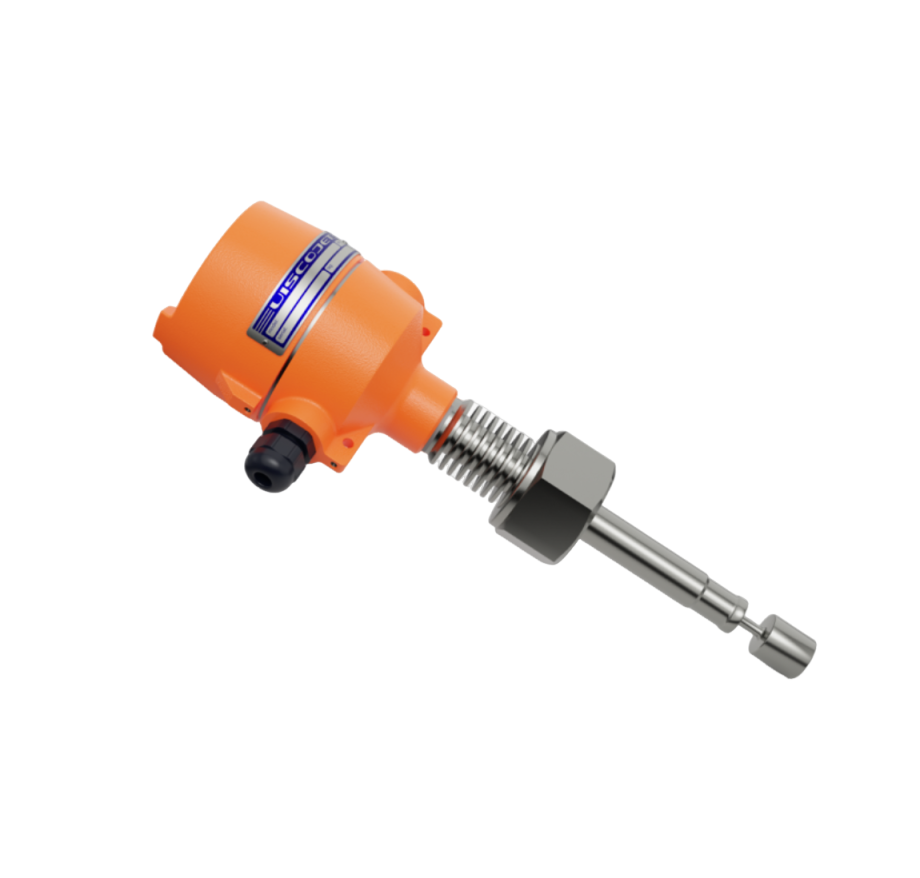

Hydramotion VISCOJET Fuel Oil Viscosity Sensor (0 – 1,000 cP)

PERFORMANCE

Range: 0 – 1,000 cP

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 0.1cP

Repeatability: 0.3% of reading or +/- 0.05cP

OUTPUTS / INPUTS

Analog: 2 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature

Digital: RS485 ModBus Data Link to host system or PC running ViscoLink

Power: 24v DC @ 80mA

TEMPERATURE

Integral Thermometer: Integrated temperature measurement

Standard Range: -50 °C to 150 °C

Extended Range: To order for greater than 150 °C *

PRESSURE

Standard Range: 50 Bar

Extended Range: To order for greater than 50 bar *

PIPE CONNECTION

Standard Fitting: 3/4” or 1” BSPP / NPS,  1.5” cone-seat (Swagelok™)

Special Fitting: Non-standard process connection to order *

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length up to 1000m

Cable Type: Any standard instrument cable

CONSTRUCTION

All welded, crevice-free

MATERIALS

Head: SS316 ( EN 1.4401)

Sensor: SS316 ( EN 1.4401)

Sensor/Fitting Options: Alloy C22 (EN 2.4602)

Alloy C276 (EN 2.4819)

S32750 Duplex Steel (EN 1.4410)

Special Materials: Non-standard materials to order *

SURFACE FINISH

Standard: N6 0.8 Ra

Special Finish: Non-standard finish options and coatings to order *

WEIGHT: 3Kg

INGRESS PROTECTION

Standard: IP67

SOFTWARE

ViscoLink data viewing and logging PC software
