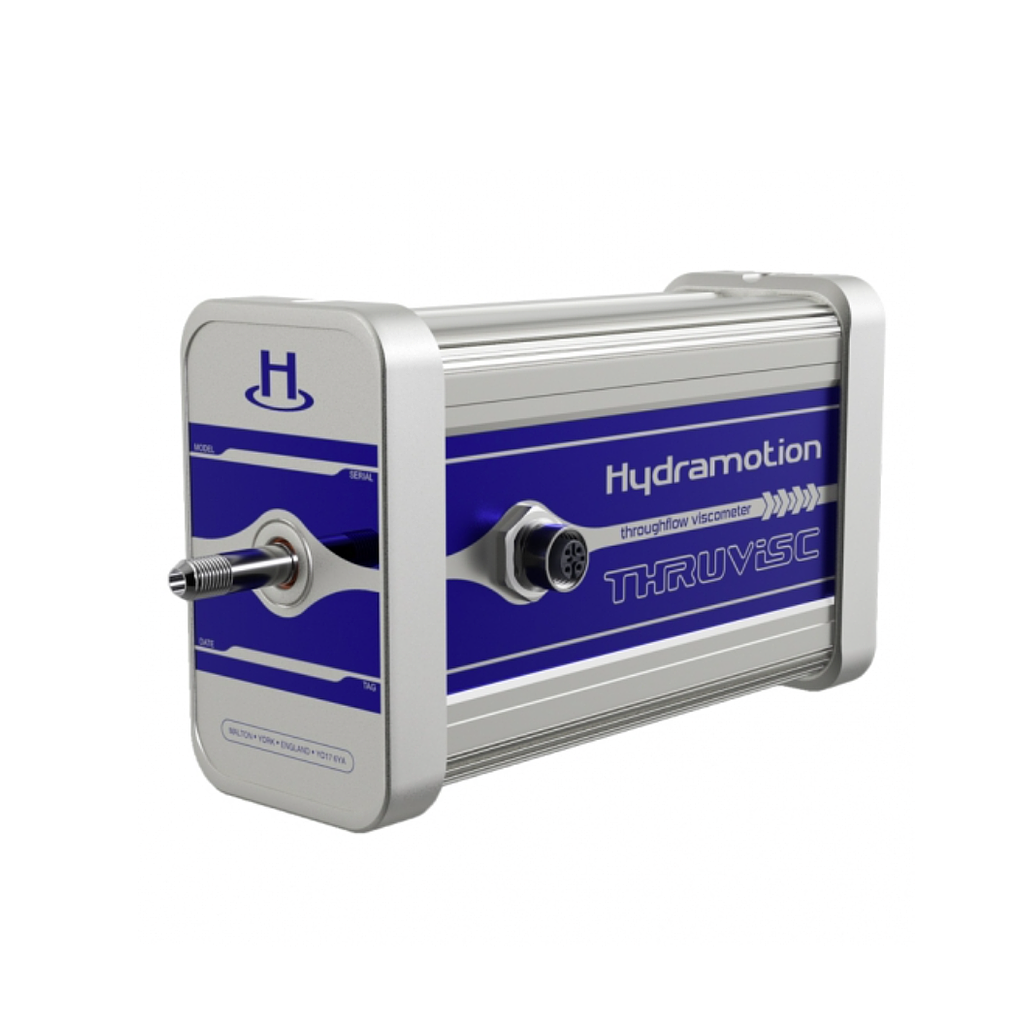

Hydramotion THRUVISC Through Flow Viscometer (0 – 10,000 cP)

PERFORMANCE

Range: 0 – 10,000 cP

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 0.1cP

Repeatability: 0.3% of reading or +/- 0.05cP

OUTPUTS / INPUTS

Analog Outputs: 2 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature

Digital: RS485 ModBus Data Link to host system or PC running ViscoLink

Power: 24v DC @ 80mA

TEMPERATURE

Integral Thermometer: Integrated temperature measurement

Standard Range: -50 °C to 100 °C

PRESSURE

Standard Range: 100 Bar

PIPE CONNECTION

Standard fitting: All common pipe fittings available

Mounting: 4x M5 mounting holes

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length up to 1000m

Cable Type: Any standard instrument cable

CONSTRUCTION

5.5mm Bore: Smooth uninterrupted bore - no welds or crevices

MATERIALS

Enclosure: Anodised 6082 aluminium

Fitting: As Required

Tube Material: Alloy C276 (EN 2.4819)

WEIGHT: 1.8kg

SOFTWARE: ViscoLink data viewing and logging PC software
