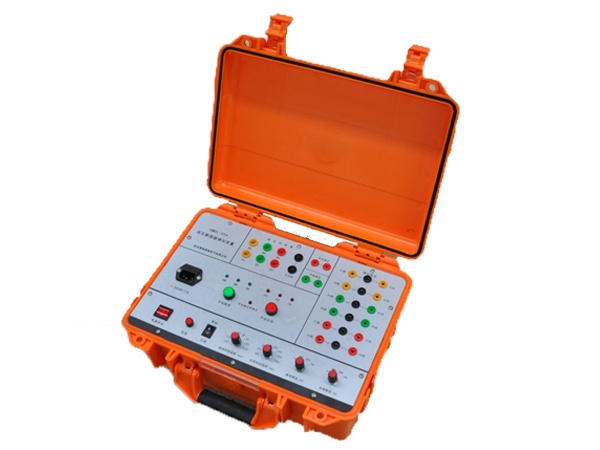

HV HIPOT GMDL-02A HV Circuit Breaker Analog Device (DC220V/0.5A; AC220V/5A)

• Supply voltage:AC220V±10% 50Hz, working current is less than 0.5A.

• Tripping & Closing operation voltage: DC200V or DC110V.

• Tripping & Closing operation time

- Tripping operation time selection: 20ms, 30ms, 40 ms, 50 ms, 60 ms, 70 ms, 90 ms, 110 ms, the error is not more than±5ms.

- Closing operation time selection: 40ms, 60ms, 80ms, 100ms, 200ms, 300ms, 400ms, 500ms, the error is not more than ±5ms, (500ms, the error is not more than ±20ms).

• Tripping & Closing operation current

- Tripping resistance selection: ∞Ω,100Ω, 200Ω, 400Ω

- Closing resistance selection: ∞Ω,100Ω, 200Ω, 400Ω

- Tripping & Closing operation current while automatically cut off by the control of the Tripping & Closing operation time.

• Output Contact capacity: DC220V/0.5A, AC220V/5A.
