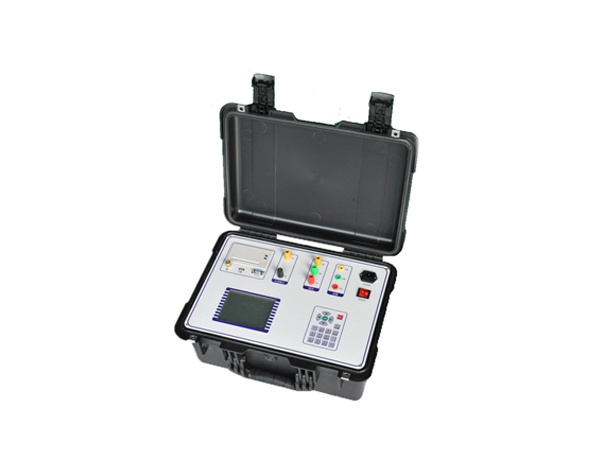

HV HIPOT GDZT-3A Transformer Short-circuit Impedance Tester
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDZT-3A
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Testing accuracy: Voltage/current: 0.2%
Power: COSφ>0.1, 0.5%; COSφ≤0.1, 1.0%
Impedance COSφ>0.1, 0.5%; COSφ≤0.1, 1.0%
Voltage range: AC 3V-300V
Internal power output range: Voltage 0-250V, Current 0-10A
Current range: AC 0.2A-20A
Working temperature: -10℃~50℃
Working humidity: 0-80%
Power supply: AC220V±10%, 50Hz±1Hz
Dimensions: 360mm×220mm×150mm
Weight: 5kg
