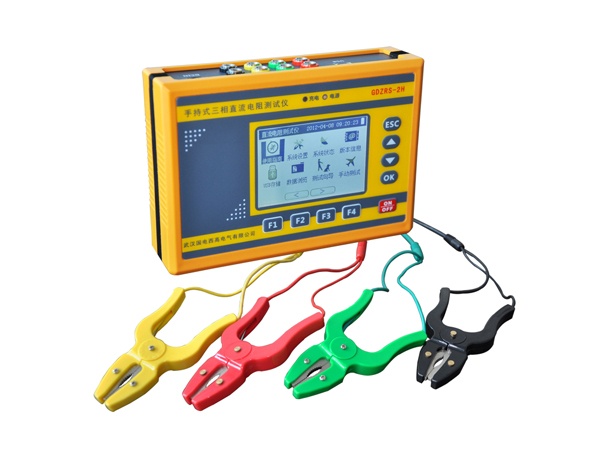

HV HIPOT GDZRS-2H Three Phase DC Winding Resistance Tester

Power Supply:

AC: AC220V±10%,50Hz±1Hz

DC: Built-in 14.8V/2.6AH Lithium battery

Output current: 20mA, 200mA, 2A(automatic selection based on range)

Output voltage of open circuit: DC12V

Range (Automatic switch of resistance range):

2A (Max.5.5Ω): 0.0001mΩ-4.9999mΩ; 0.001mΩ-49.999mΩ; 0.01mΩ-499.99mΩ; 0.0001Ω-4.9999Ω;

200mA (Max.55Ω): 0.01mΩ-499.99mΩ; 0.0001Ω-4.9999Ω; 0.001Ω-49.999Ω;

20mA (Max. 22kΩ): 0.0001Ω-4.9999Ω; 0.001Ω-49.999Ω; 0.01Ω-499.99Ω; 500.00Ω-999.99Ω; 1.000kΩ-9.999kΩ; 10.00kΩ-19.99kΩ;

Accuracy:

- Less than 1.000kΩ: ±(0.2%RD+0.05%FS)

- 1.000kΩ and above: ±(0.2%RD+0.1%FS)

Min. Resolution: 0.1μΩ

Storage: 10000groups

Display: LCD display

Working environment: -10～40℃

Environmental humidity: ≤80%RH, no condensation

Storage condition: -20℃~50℃, ≤95%RH, no condensation

Size: 170mm×119mm×45mm

Weight: 595g(with battery)
