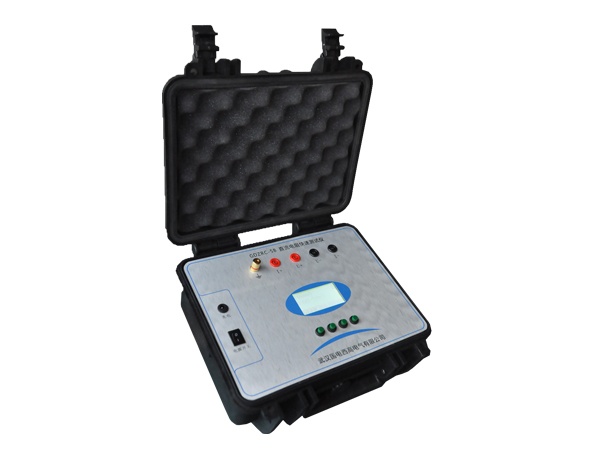

HV HIPOT GDZRC-5B Transformer DC Winding Resistance Tester (0~20KΩ)
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDZRC-5B
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measurement range: 0~20KΩ (4 steps in total)
Test current: 5A(1mΩ~400mΩ); 2A(30mΩ-5Ω); 1A(50mΩ-10Ω); 0.1A(0.5Ω-20KΩ)
Resolution: 1μΩ
Accuracy: 1uΩ (±0.2%±2 digits)
Power consumption: ≤30W
Use conditions: 0℃~40℃; ≤ 85%RH
Withstand voltage: AC1.5kV 50Hz for 1 minute
Power supply: Internal lithium battery 2200mAh
