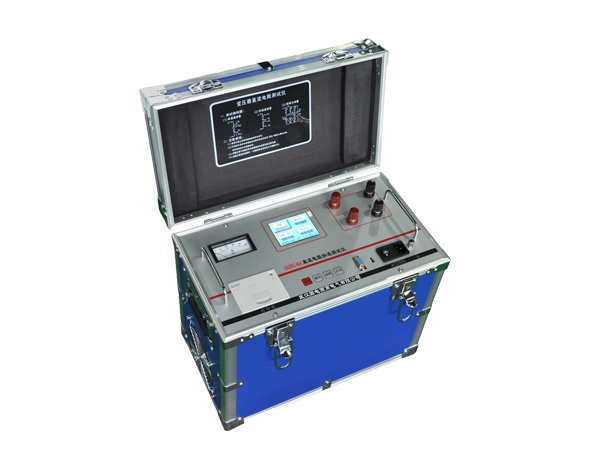

HV HIPOT GDZRC-40U DC Winding Resistance Tester (3 phase)
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDZRC-40U
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output current: <5mA, 2.5A, 5A, 10A, 20A, 40A
Min. resolution: 0.1μΩ
Measurement range:
40A: 50μΩ~500mΩ
20A: 100μΩ~1Ω
10A: 500μΩ~2Ω
5A: 1mΩ~4Ω
2.5A: 2mΩ~8Ω
<5mA: 10Ω~20KΩ
Accuracy: ±(0.2%+2digits)
Operation temperature: 0~40℃
Humidity: <90%RH (no condensing)
Size: 325mm×240mm×275mm (L×W×H)
Weight: 15kg (without test wire)
