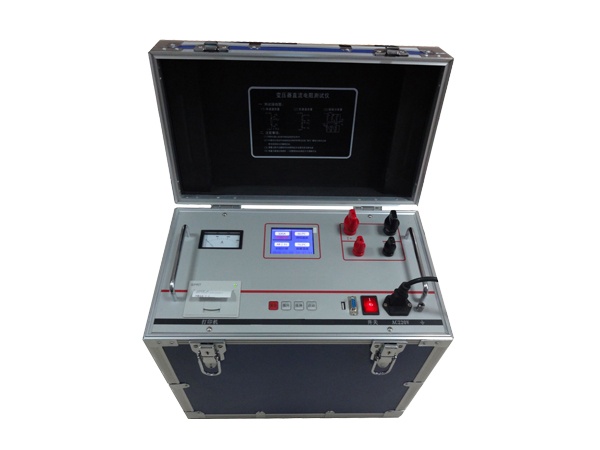

HV HIPOT GDZRC-100U Transformer DC Winding Resistance Tester

Output current: 100A, 50A, 20A, 10A, 5A

Min. resolution: 0.1μΩ

Measurement range:

At 100A: 50μΩ~100mΩ;

at 50A: 100μΩ~200mΩ;

at 20A: 200μΩ~800mΩ;

at 10A: 500μΩ~2Ω;

at 5A: 1mΩ~4Ω

Accuracy: ±(0.2%+2digits)

Working temperature: 0℃～40℃

Relative humidity: <90%RH(no condensing)

Size: 440*245*395mm

Weight: instrument: 19.5kg; accessory case: 7.5kg

Accessories

Tester: 1 set

Power cord: 1pc

Test line: 1 set

Printing paper: 1 roll

Fuse: 2pcs

Ground cable: 1pc

RS232 communication line: 1pc

Test object: 1pc

User's guide: 1 copy

Warranty card: 1 copy

Factory test report: 1 copy
