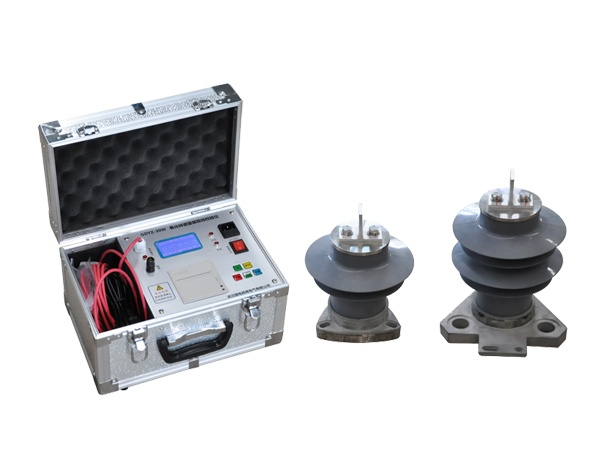

HV HIPOT GDYZ-30W Zinc Oxide Surge Arrester Tester (6~30kV; 0~1000μA)

Specification

Measurement range: Voltage: 6~30kV; ripple coefficient≤1.5%;current: 0~1000μA

Resolution: Current: 0.5μA, voltage: 0.1 kV

Power supply: AC220V;

Battery operated, charging time 2-3 hours, service life≥4 hours

Charging voltage: AC100V~240V

Frequency: 50±1Hz

Remote control distance: 100m

Ambient temperature: ≤85% (at 25℃)

Altitude: <1000m

Accessories

Main Unit x 1 piece

Power cord x 1 piece

Test line x 1 piece

Remote controller (optional) x 1 piece

Print paper x 1 roll

User’s guide x 1 copy

Warranty card x 1 copy

Packing list x 1 copy

Factory test report x 1 copy
