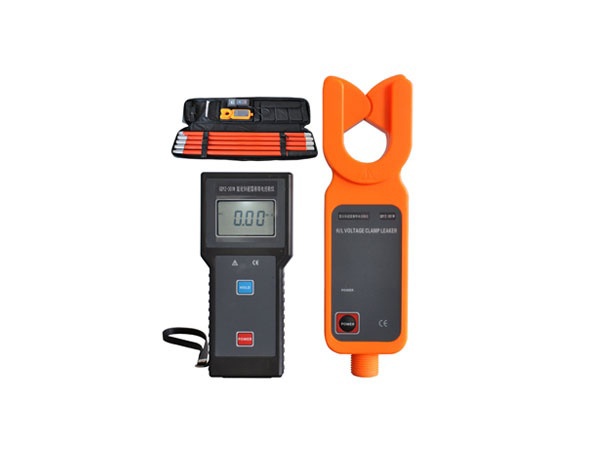

HV HIPOT GDYZ-301W Lightning Arrester Tester/Clamp Current Meter (AC 30mA)

Function: After checking high accurate leakage, the MOA is judged online probably with spot, moisture inside or agin.

Power supply: DC6V Alkaline battery (1.5V AAA×4)

Testing way: Clip CT by integral way

Transmit: 433MHz wireless transmit ion, transmit in 30m area

Display mode: Four digital LCD display, which can be used in dark places.

LCD size: 47mm×28.5mm

Instrument size: HV detecter:68mm×245mm×40mm

Receiver:75mm×170mm×30mm

Clip size: φ33mm

Sampling speed: 2/s

Measurement range: AC 0.000mA~30.00mA (50/60Hz automatically)

Resolution: 1uA

Shift: AC 0.000mA~30.00mA shift automatically

Accuracy: ±2%±5dgt (23℃±5℃, below 80%RH)

Storage: 99 data, MEM means direction, FULL means the storage is full.

Data hold: Press HOLD button to hold the data, and press it again to cancel it.

Checking data: MR button can read the stored data up and down.

Overflow: OL shows overflow the testing range

No signal: no-- shows that the receiver has not receive the signal

Auto off: The instrument will turn off automatically after 5min to save the battery

Battery voltage: When the battery voltage is below 4.8V, shows that it is time to change the battery

Weight: Detector (with battery):335g, Detector(with insulating rod and battery):2.5Kg

Environment temperature and humidity: -20℃~40℃; below 80%Rh

Storage: -20℃~60℃; below 70%Rh

Interference: No 433MHz frequency signal interference

Insulating rod size: φ32mm,1m/pc(5pcs)

Insulation strength: Single insulating rod AC110kV/rms, the shell of the HV detecter between the iron core: AC1000V/rms

Structure: Drip tight type II
