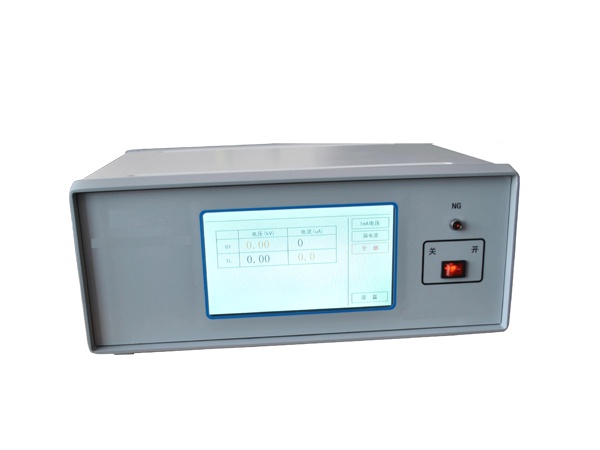

HV HIPOT GDYZ-11 MOA Varistor Tester (1.00~10.00kV)

Specification

Voltage Measurement range: 1.00~10.00kV

Accuracy of constant current: 1.00mA±0.05mA

Voltage measurement accuracy: ≤±0.5%±1 digit

Leakage current measurement: leakage current is measured at voltage U1mA*75%

Error of constant current: ≤1%±1 digit

Measurement range of leakage current: 0~100.0μA

Measurement error of leakage current: 10% or 2μA (the larger value is taken)

Size: 420*150*300mm

Weight: 5kg

Accessories

Main unit x 1 set

Power cord x 1pc

Measuring electrode x 1pc

User’s guide x 1 copy

Warranty card x 1 copy

Factory test report x 1 copy
