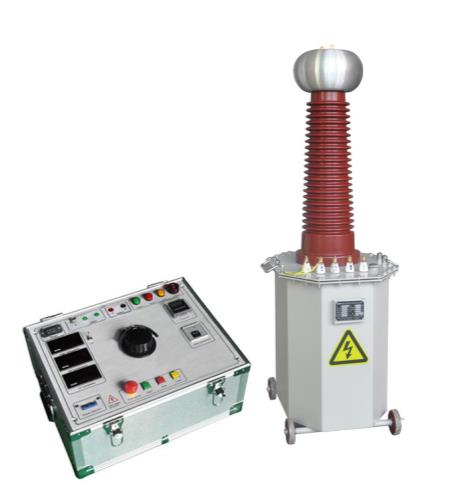

HV HIPOT GDYD-85D AC/DC Hipot Test Set (5kVA/80kVAC, 11 0kVDC)
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDYD-85D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Input: AC220V ± 10%
Frequency:50Hz ± 1
Output:0 - 80kV, 62.5mA AC RMS
0 - 110kV, 45mA DC RMS
Rating: 100%Rated - 1minute, 50% continuous
Capacity: 5 kVA (based on selectable)
HV Source: Epoxy resin
Output control: Manual control
Voltage accuracy: ≤3.0%
Current Accuracy: ≤3.0%
Timing range: 0 - 99H
Metering: Digital display, kV meter: 0 -100kV, mA meter: 0 - 65mA, A meter: 0 - 25A
Humidity: 85% RH
Environmental temperature: -2020℃～5050℃
Weight: Control Unit: About 18kg
Oil testing transformer: About 100kg.
