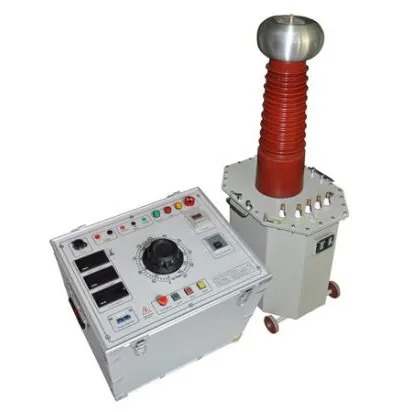

HV HIPOT GDYD-55D AC/DCHipot Test Set (5kVA / 50kVAC, DC)

Input: AC220V ± 10%

Frequency: 50Hz ± 1

Output: 0-50kV, 100mAAC RMS0-50kV, 71.4mADC RMS

Rating: 100%Rated-1minute, 50%-continuous

Capacity: 5kVA (based on selectable)

HV source: Insulation oil (Oil type testing transformer)

Output control: Manual control

Voltage and current accuracy: ≤1.5%(F.S)

Timing range: 0-99H

Metering: Digital display, kV meter: 0-50kV, mA meter: AC 0-100mA

Humidity: 85% RH

Environmental temperature: -20°C ~ 50°C

Weight: Control unit: 20kg, oil testing transformer: 45kg.
