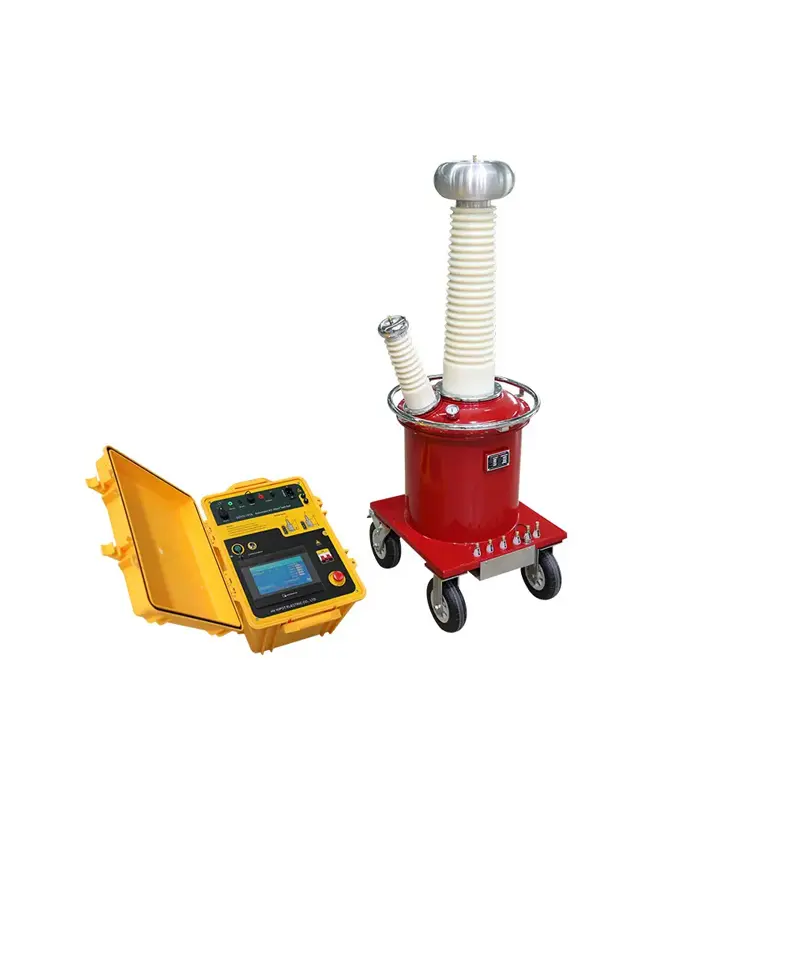

HV HIPOT GDYD-137 AC Hipot Test Set For Insulated Boom

Input: AC 220V± 10%, 50Hz, 32.5A, Single phase

Output:

0-130kV, 50mA

0-36kV, 180mA

Rating:

25mA/90mA, continuous working

33.3kV/120mA, 1hour ON/1hour OFF

50mA/180mA, 5mins ON/15mins OFF

Capacity: 6.5kVA

HT Source: SF6 gas (Gas testing transformer)

Output control: Manual control

Voltage accuracy: ≤ 1.5% (F.S)

Current Accuracy: ≤ 1.5% (F.S)

Timing range:  0-99H

Metering:

LCD display

kV meter: there is a switching button, the range is 0-36kVAC if it switches to 36kV, the range is 0-130kVAC if it switches to 130kV

mA meter: 0-5.000mA

Humidity: 85% RH

Environmental temperature: -20℃～50℃
