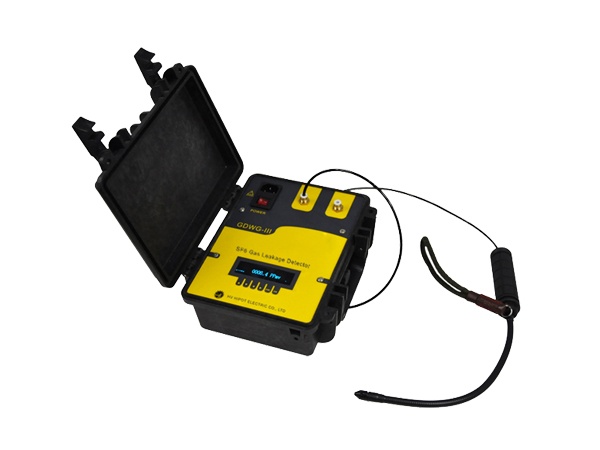

HV HIPOT GDWG-III SF6 Gas Quantitative Leakage Detector (0-1500ppm)

Measuring principle: Non-dispersive infrared sensor (NDIR)

Measuring range: 0-1500ppm SF6

Resolution: 0.1ppmv

Accuracy: ±2%FS (0-1000ppm)

Repeat-ability error: ≤±1%

Sensitivity: 1ppmv

Response time: ≤10s

Recovery time: ≤15s

Stability: ≤±20ppm, more than 1000 hours

Sampling mode: Pump suction type, flow up to 1L/min.

Zero drift: ≤±1%(F.S/year)

Linear error: ≤±1%

Peak current: <700mA

Average power: <2W

Operation air pressure: 800-1150hPa

Environment humidity: 0-95%RH

Storage temperature: -20 ~ +60℃

Operation temperature: -20 ~ +50℃

Operation humidity: 0-95%(non-condensing)

Working voltage: 220VAC±10%,50Hz Or Built-in Li-battery, continuous working 6 hours after full charge.

Dimension: 220*250*120mm

Weight: About 2kg
