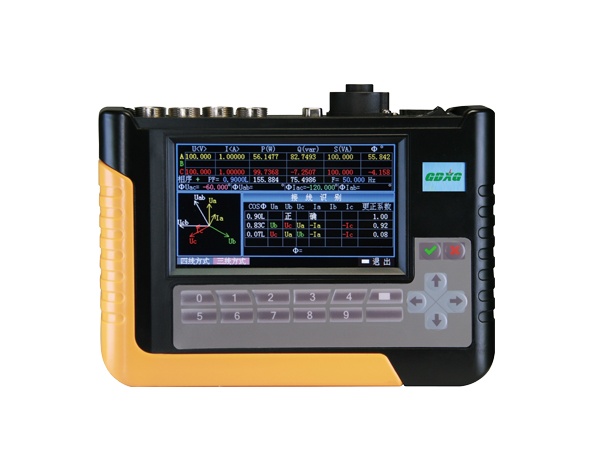

HV HIPOT GDW-5000A Hand-held Three Phase Electric Power Inspector (30V-480V)

Voltage Range: 30V-480V

Voltage Error: ±0.2%

Clamp (1 times over-load): 5A,100A,500A,1000A

Input Frequency Range: 45-55Hz

Frequency Measurement Error: ±0.01Hz

Phase Measurement Range: -180°~ +180°

Maximum Phase Error: ±0.1°

Harmonic Measurement: ±0.1%

Harmonic Measurement Range: 2-51times

Pulse Constant:

Low Frequency: 5A: 3600P/kWh; Others: 3600*(5/Ie) P/kWh

High Frequency: 5A: 3.6x10^7 P/kWh; Others: 3.6x10^7 *(5/Ie) P/kWh

Note: Ie is rated current

5A Clamp:

- Active power energy, power: ±0.5%

- Reactive power energy, power: ±0.5%

- Current: ±0.5%

- Self-checking Current: 5A, 0.5A

- Self-checking Error: ±0.1%

Large Current Clamp

- Active power energy, power: ±0.5%

- Reactive power energy, power: ±0.5%

- Current: ±0.5%

Others

- Turns Ratio Measurement: ±0.5%

- Voltage Influence: < ±0.01%

- Frequency Influence: < ±0.01%

- Temperature Influence: < ±0.005%/ºC

- Deviation in 24hours: < ±0.04%

- Harmonic Influence: < ±0.01%

Turn-on stabilizing time: <5 minutes

Environmental temperature: -25ºC- +45ºC

Relative humidity: 40%-95%

Power Supply: AC 45V - 480V

Power Consumption: < 10W

Dimension: 190*140*50mm

Weight: < 1kg
