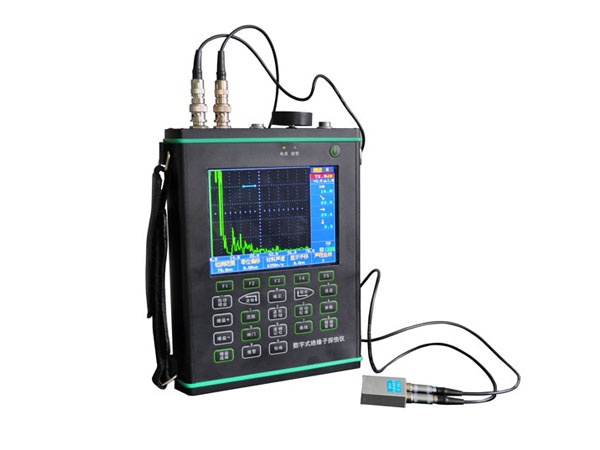

HV HIPOT GDUD-PBI Ultrasonic Flaw Detector for Electrical Equipment (0.5~20 MHz)

Working frequency: 0.5~20 MHz

Gain adjustment: 110dB (manual 0.1dB/2dB/6 dB step-wise)

Detection range: 0~9999mm longitudinal wave (steel)

Velocity Range: 0 ~ 9000 m/s

Dynamic range: ≥ 32dB

Vertical linearity error: ≤ 3%

Horizontal linearity error: ≤ 0.1%

Resolution: > 42dB (5P14)

Surplus sensitivity: > 62dB (200mmΦ2 depth, flat-bottom hole)

Data saving capacity: 21 groups of detection data, 1000 echoes

Power supply/voltage: DC 7.4V lithium battery, continuous working for 12 hours; AC220V

Environmental temperature: -25 to 50° C

Related humidity: 20%-95% RH

Dimensions: 210*168*50(mm)

Weight: 1.8kg (including built-in battery)
