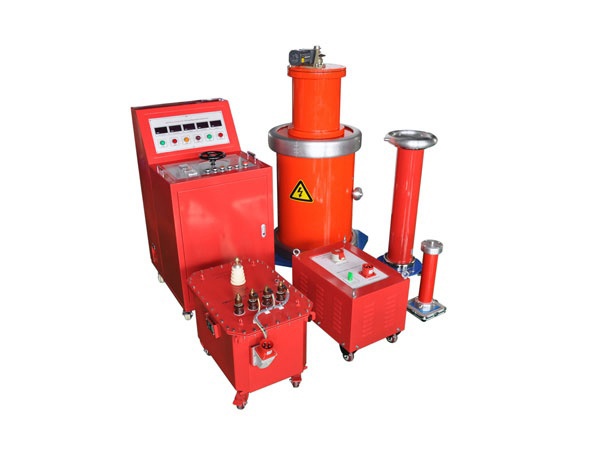

HV HIPOT GDTF(L)-225/25 PD-free AC Series Resonant Test System (225kVA; 25kV)

Technical Data & Functions

Rated capacity: 225kVA

Input power supply: Single phase 380V; 50Hz

Rated voltage: 25kV

Rated current: 9A

Working Frequency: Power frequency 50Hz

Output voltage Waveform distortion rate: ≤0.5%

Working time: continuous working of 15min under rated load.

Temperature rise: ≤65K after continuous working of 15min under rated load

Quality factor: Q ≥10

Accuracy: 1.5% (RMS)

Protective function: over-current, over-voltage and flashover protections for test object.

Partial discharge amount: ≤5PC

Working Environment

Environmental temperature: -10℃ to 50℃

Related humidity: ≤ 90% RH

Altitude: ≤ 1km

Datasheet
