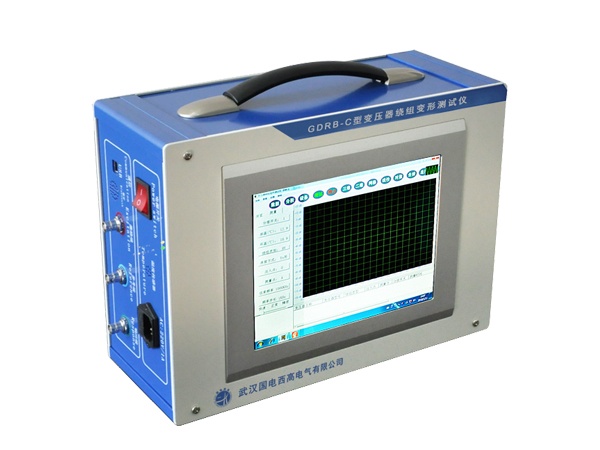

HV HIPOT GDRB-C Transformer Winding Deformation Tester (10Hz-10MHz)

Scan mode:

1. Linear scanning distribution

Scanning measurement range: (10Hz) - (10MHz) 40000 scanning point, resolution 0.25kHz, 0.5kHz and 1kHz.

2. Segment frequency scanning measurement distribution

Frequency scanning measurement range: (0.5kHz) - (1MHz), 2000 scanning points; (0.5kHz) - (10kHz) (10kHz) - (100kHz) (100kHz) - (500kHz) (500kHz) - (1000kHz)

Other technical parameters:

Amplitude measurement range: (-120dB) to (+20 dB)

Amplitude measurement accuracy: 0.1dB

Scanning frequency accuracy: 0.01%

Signal input impedance: 1MΩ

Signal output impedance: 50Ω

Signal output amplitude: ± 20V

In-phase test repetition rate: 99.9%

Measuring instruments dimensions (L*W*H): 300*340*120 (mm)

Instrument’s aluminum box dimension (L*W*H): 310*400*330 (mm)

Overall weight: 10kg

Working temperature: -10℃~+40℃

Storage temperature: -20℃~+70℃

Relative humidity: <90%, Non-condensing
