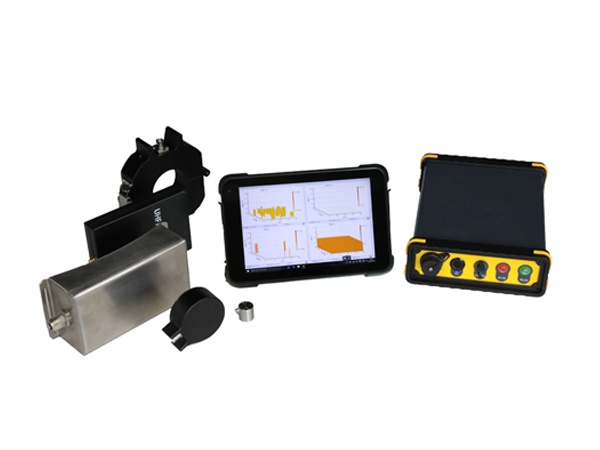

HV HIPOT GDPD-414H Portable Partial Discharge Detector

PD signal acquisition host

CPU Working frequency: 800MHz

Operating system: Linx embedded operating system

Wired network port: LAN network port

Wireless network port: Built-in wireless WiFi

System running memory: 512M

System storage memory: 256M

Data acquisition frequency: 80MHz

Ultrasonic detection channel

Measurement range: 0-60mV

Frequency detection range: 20~200kHz

UHF detection channel

Detection frequency: 300~1500MHz

Measurement range: -80~10dBm

Error: ±1dBm

Resolution: 1dBm

HFCT detection channel

Frequency range: 0.5~100MHz

Error: ±1dBm

Dynamic Range: 60dB

Measurement range: 0-100mV

Accuracy: 1dBm

TEV detection channel

Frequency range: 3~100MHz

Error: ±1dB/mV

Sensitivity: 0.01mV

Measurement range: 0-60dB/mV

Resolution: 1dBm/mV

Battery

Built-in battery: Lithium battery, 12V, 2000mAh

Use time: about 6 hours

Charging time: About 2 hours

Battery protection: Over-voltage and over-current protection

Battery charging

Rated voltage: 12.6V

Charging output current: 2A

Operating temperature: -20℃-60℃

Operating humidity: <80%

Hand-held display terminal (industrial grade)

CPU: Intel Quad Core Atom Z3735F

GPU: Intel HD Graphic (Gen7)

Flash: 32GB

RAM: 2GB

Operating system: Windows10

Display: 8.1 inch 1280×800 IPS screen

Network interface: Wifi and Bluetooth

Battery: 3.7V 8500mAH polymer lithium ion battery

Size

PD acquisition host size: 240mm*165mm*55mm

PD acquisition host weight: 0.65kg

Display tablet terminal size: 395mm*295mm*105mm

Display tablet terminal weight: 0.85kg

Overall box size: 570mm*360mm*240mm

Working environment

Working temperature: -20℃~50℃

Environment humidity: 0~90%RH

IP level: 54
