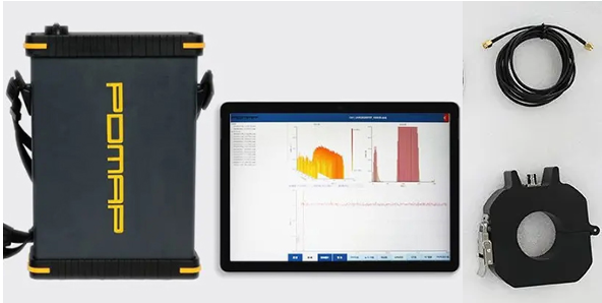

HV HIPOT GDPD-414H Portable Partial Discharge Detector (2 channel + HFCT sensor)

PD 2-Channel Signal Acquisition Server:

Specifications:

CPU Operating Frequency: 1.2GHz

Operating System: Embedded Linx OS

Wired Network Port: LAN Network Port

Wireless Network Port: Integrated Wi-Fi

System Running Memory: 512MB

System Storage Memory: 256MB

HFCT Sensor:

Frequency Range: 0.5 ~ 100MHz

Accuracy: ±1dB

Sensitivity: 15mV/1mA

Dynamic Range: 60dB

Measurement Range: 0-1000mV

Resolution: 1dB

Signal Acquisition Frequency: 100MHz

Industrial Handheld Tablet:

CPU: Intel® Quad Core Atom™ Z3735F

GPU: Intel® HD Graphics (Gen7)

Flash Storage: 32GB

RAM: 2GB

Operating System: Windows 10

Display: 8.1-inch IPS Display, 1280x800 Resolution

Network Connectivity: Wifi and Bluetooth

Battery: 3.7V 8500mAh Lithium-Ion Polymer Battery

Operating Environment:

Operating Temperature: -20°C ~ 50°C

Ambient Humidity: 0 ~ 90%RH (Relative Humidity)

Protection Level: IP54

Included Items:

GDPD-414H PD Signal Acquisition Server (2-Channel): 1 unit

8.1-inch Industrial Tablet: 1 unit

External HFCT Sensor (Optional): 1 unit

Signal Acquisition Cable: 1 set

Charger: 1 unit

Server Carrying Case: 1 unit

Operation Manual: 1 copy

Factory Inspection Certificate: 1 copy

Accessory Box: 1 unit
