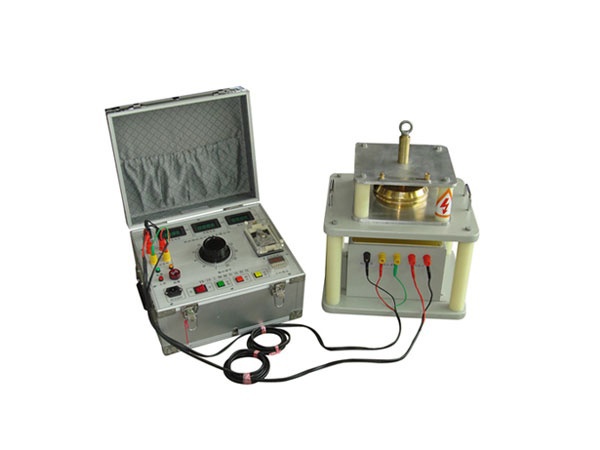

HV HIPOT GDML-20S Leakage Current Test Set for FRP Insulator Core Rod (2kVA)
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDML-20S
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Capacity: 2kVA.
Input voltage: 220V.
Rated input current: 9.1A.
Max. Output voltage: 20kV.
Rated output current: 2.000mA.
Resolution: 1uA.
Max. Open distance of electrode: 50mm.
Max. Diameter of electrode: 150mm.
Inherent leakage current: 0.7mA/20kV(Basic linear).
Weight: Control unit --- 18kg; HV electrode ---
Dimension: Control unit --- 440mm (L)*340mm (W)*240mm (H);
HV electrode--- 380mm (L)*380mm (W)*960mm (H);
