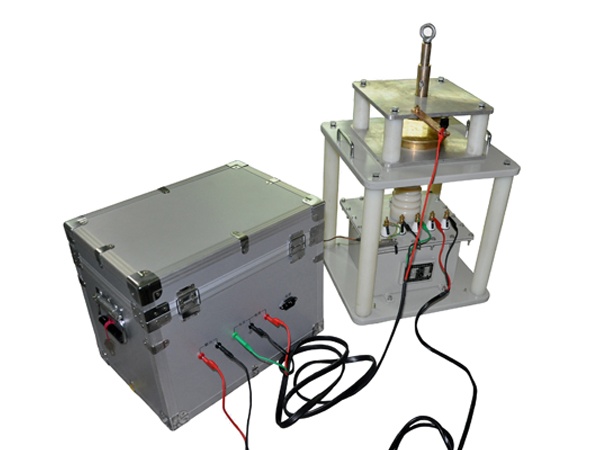

HV HIPOT GDML-20 Automatic Leakage Current Test Set for FRP Insulator Core Rod (2kVA)
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDML-20
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Equipment capacity: 2kVA
Input voltage: 220V
Rated input current: 9.1A
High voltage output: 0-20kV
Rated output current: 2.000mA
Resolution: 0.1uA
Maximum opening distance of electrode: 50mm
Maximum diameter of the electrode: ¢150mm
Equipment inherent leakage: 0.12mA / 20kV (basic linear)
Timing range: 0-999S
Ambient temperature: -20 ° C to 50 ° C
Voltage accuracy: ≤1.5% (F.S) ± 5 words
Current Accuracy: ≤1.5% (F.S) ± 5 words
Dimension: 360*360*750mm
Weight: 35kg
