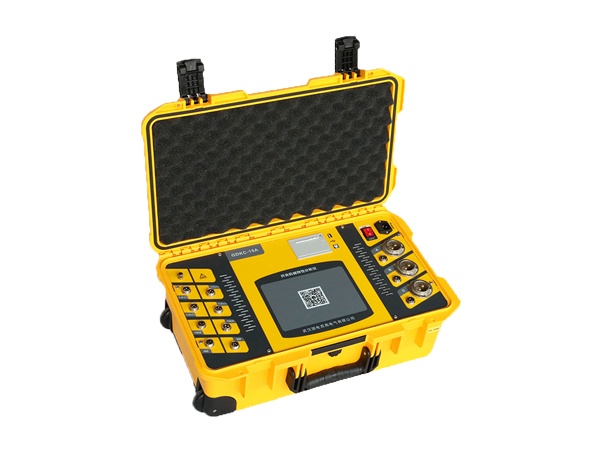

HV HIPOT GDKC-15A High Voltage Circuit Breaker Analyzer

Timing measurement:

- 12 contacts Inherent open (close) time

- Open (close) in phase synchronization

- Open(close) phase-to-phase synchronization

- Close (open) bounce time (number of bounce)

- Test range: 0.01ms to 18000ms, resolution: 0.01ms

Double-end grounded switch measurement:

- 3(6) contacts Inherent open (close) time

- Open (close) in phase synchronization

- Close (open) bounce time and waveform

Velocity measurement:

- Just open (just close) velocity

- Specified time period (travel or angle) average velocity

Velocity measurement range:

- 1mm sensor: 0.01~25.00m/s

- 0.1mm sensor: 0.001 to 2.50m/s

- 0.5°angle sensor: 1 wave cycle / 0.5°

Travel measurement:

- Moving contact travel (travel)

- Contact travel (open distance)

- Travel overshoot and return (over-travel)

- Sensor: 50mm, Resolution: 0.1mm

- 360 line sensor: 360º, resolution: 0.5º

- Optional sensor: 300mm, 1000mm, acceleration sensor

Current display: Maximum current 30A, resolution: 0.01A

Instrument power supply: AC/DC 220V±10%; 50Hz±2%

DC power output: DC power output: DC20~260V continuously adjustable, DC110V≤30A (short-term), DC220V≤20A (short-term)

External trigger voltage: AC/DC10-300V, current≤120A

Isolated switch measurement range:

- Voltage output: DC10~260V (adjustable);

- Power output time: 0.01-20 seconds (can be set);

- The maximum acquisition time of the fracture signal is 200 seconds;

- Measurable fracture open, close time, three phases different period, bounce time and time

- Measurable fracture open, close time, three phases different period, bounce time and time

Host volume: 360*260*170mm

Operating Environment: -20ºC~+50ºC
