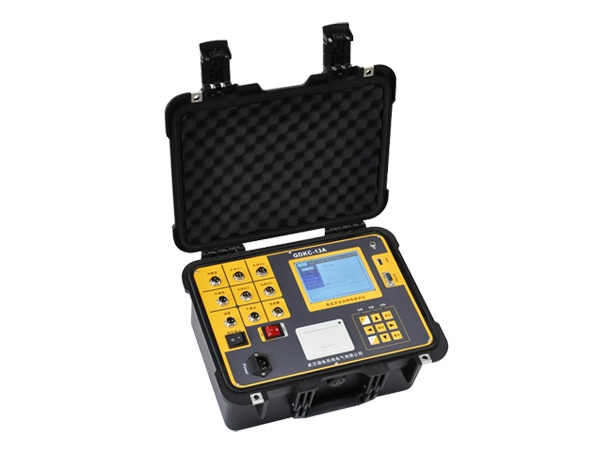

HV HIPOT GDKC-13A High Voltage Circuit Breaker Analyzer

Usage Environment

- Input Power: 220V±10%, 50Hz±10%

- Air Pressure: 86-106kpa

- Temperature: -10-40℃

- Humidity: ≤80%RH

Safety Performance

- Insulation Resistance>2MΩ

- Dielectric Strength: Shell can withstand power frequency voltage 1.5kV at 1 minute without flash-over and arcing.

The Basic Parameters

a. Time:

Range 4000.0+6000.0 ms

Resolution 0.1ms

Error 0.1ms ± 1digit within 100ms

0.1% ± 1digit more than 100ms Same period

b. Velocity

Range: 20.00m/s; resolution: 0.01m/s

Error: ± 0.1m/s ± 1digit within 0-2m/s ± 0.2m/s±1digit more than 100ms

c. Range

Vacuum breaker: Range: 50.0mm; Resolution: 0.1mm; Error: 0.1±1mm

SF6 circuit breaker: Range: 300.0mm; Resolution: 1mm; Error: 0.1±1mm

Oil circuit breaker: Range: 600.0mm; Resolution: 1mm; Error: 0.1±1mm

d. Current: range 20.00A; resolution 0.01A

r. Output power: DC25-250V digital adjustable / 20A(instantaneous working), resolution 1V.

f. Dimensions: 360mm (L)* 280mm (W)* 300mm (H)

g. Weight: 9kg
