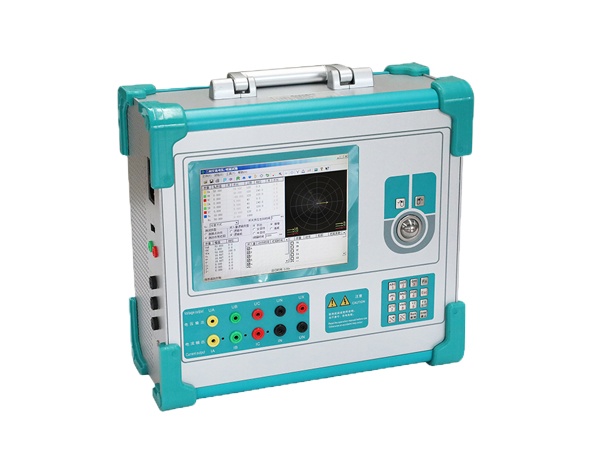

HV HIPOT GDJB-902A Relay Protection Tester (3 phase)

AC current output

Phase current output (effective value): 0~40A, Output Precision 0.2 degree

3 phase parallel current output (effective value): 0~120A

A Long-time Phase current: 10A

Maximum output power of Phase current: 420VA

Maximum output power of 3 parallel current: 900VA

Maximum Permitted work time of 3 parallel current: 10S

Frequency range (fundamental): 20~1000Hz

Harmonic time: 1~20

DC current output

Current output: 0~±10A / phase, 0~±30A / 3 parallel

Output Precision: 0.5 degree

AC voltage output:

Phase voltage output (effective value): 0~120V Output Precision 0.2 degree

Line voltage output (effective value): 0~240V

Phase voltage / Line phase output power: 80VA / 100VA

Frequency range (fundamental): 20~1000Hz

Harmonic time: 1~20

DC voltage output

Phase voltage output range: 0~±160V Output Precision 0.5 degree

Line voltage output range: 0~±320V

Phase voltage / Line phase output power: 70VA / 140VA

10 path digital input and 8 path digital output

Time measuring range: 0.1ms~9999s, accuracy of measurement < 0.1ms

Size & weight: 400*360*160mm³, 18kg

Environmental temperature: -10℃~+50℃
